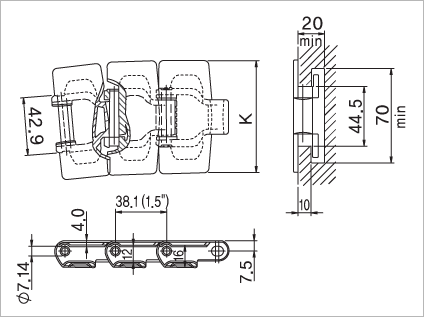

| CHAIN TYPE |
CODE. NO |
MATERIAL | PLATE WIDTH (K) |
WORK- ING LOAD (MAX) |
SIDE- FLEX RADIUS (MIN) |
BACK- FLEX RADIUS (MIN) |
WEI- GHT |
||
|---|---|---|---|---|---|---|---|---|---|
| PLATE | PIN | MM | INCH | N | R | R | kg/M | ||
| P826CT HP P114.3CT HP |
1204-HP 1205-HP |
ACETAL | STAIN- LESS STEEL |
82.6 114.4 |
3.25 4.50 |
2100 2100 |
457 610 |
50 50 |
1.15 1.30 |
