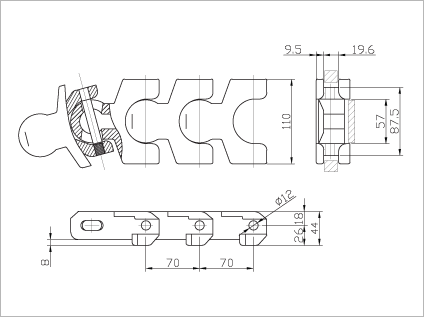

| CHAIN TYPE |
CODE. NO |
MATERIAL | PLATE WIDTH (K) |
WORK- ING LOAD (MAX) |
SIDE- FLEX RADIUS (MIN) |
BACK- FLEX RADIUS (MIN) |
WEI- GHT |
||
|---|---|---|---|---|---|---|---|---|---|
| PLATE | PIN | MM | INCH | N | R | R | kg/M | ||
| PR2700T | 5501 | ACETAL | STAIN- LESS STEEL |
110 | 4.33 | 11000 | 250 | 200 | 4.4 |

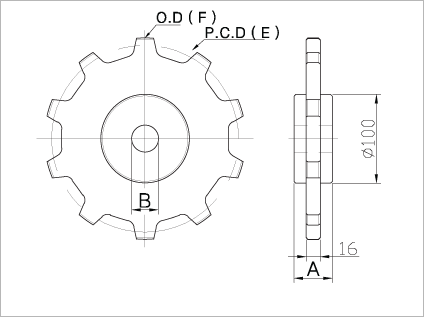

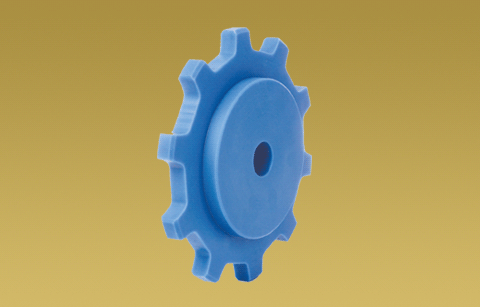

| CODE.NO | TEETH | BORE | PITCH DIAMETER (K) |
OUTSIDE DIAMETER |
WIDTH |
|---|---|---|---|---|---|
| B(mm) | E(mm) | F(mm) | A(mm) | ||
| 5010 | 8T | 25 30 35 |
182.9 | 183.4 | 43 |
| 5011 | 10T | 226.5 | 227 |
