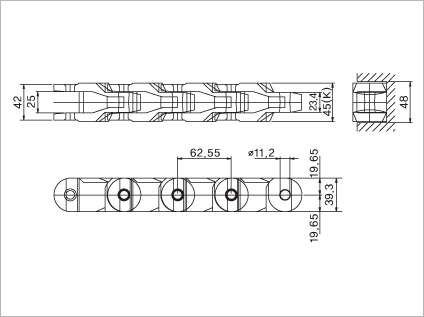

| CHAIN TYPE |
CODE. NO |
MATERIAL | PLATE WIDTH (K) |
WORK- ING LOAD (MAX) |
WEIGHT | ||
|---|---|---|---|---|---|---|---|
| PLATE | PIN | MM | INCH | N | kg/M | ||
| U-2500S | 1220 | ACETAL | STAIN- LESS STEEL |
45 | 1.77 | 7500 | 2.09 |

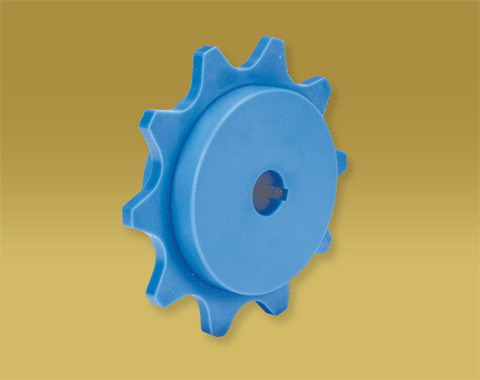

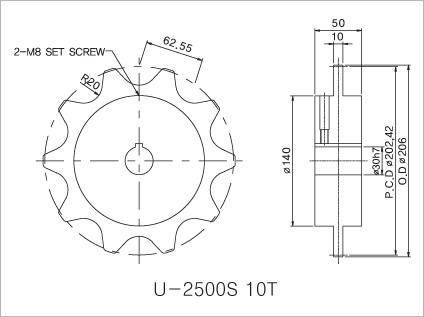

| CODE.NO | TEETHO | PITCH DIAMETER |
OUTSIDE DIAMETER |
|---|---|---|---|
| 1600 | 10 | 202.42 | 206 |
