HP TYPE의 장점

고성능의내부윤활, 일반아세탈재질에비해마모성을40%감소 LF재료보다 매우 낮은 마모율,건조한 상태 운전 시 마모감소, · 고속 운전 사용 시 적합

PROS OF HP TYPE

High-performance internal lubrication, reduces wear property by 40% over regular acetal materials. Significantly low wear over LF materials Reduced wear under dry operation conditions, suited for high-speed operation

PLASTIC RS SINGLE CHAIN(HP TYPE)

SEE PAGE 125

CHAIN TYPE	CODE. NO	MATERIAL		P	R	W	L	H1	H2	H	D	WEI- GHT
CHAIN TYPE	CODE. NO	LINK	PIN	MM	MM	MM	MM	MM	MM	MM	MM	kg/M
RS40P(HP)	1131-HP	ACE- TAL	STAIN- LESS STEEL	12.7	7.94	7.95	20	6	6.7	12.7	4	0.36
RS60P(HP)	1132-HP	ACE- TAL	STAIN- LESS STEEL	19.05	11.91	12.7	30	8.5	8.8	17.3	6	0.72

※ Standard length : RS40P-1.016m(80links)/RS60P-1.010m(53links)

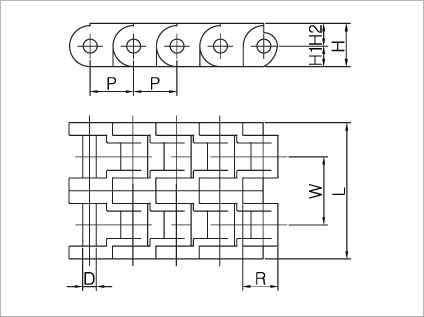

PLASTIC RS DOUBLE CHAINS(HP TYPE)

CHAIN TYPE	CODE. NO	MATERIAL		P	R	W	L	H1	H2	H	D	WEI- GHT
CHAIN TYPE	CODE. NO	LINK	PIN	MM	MM	MM	MM	MM	MM	MM	MM	kg/M
RS40PW(HP)	1135-HP	ACE- TAL	STAIN- LESS STEEL	12.7	7.94	20	40	6	6.7	12.7	4	0.72
RS60PW(HP)	1136-HP	ACE- TAL	STAIN- LESS STEEL	19.05	11.91	30	60	8.5	8.8	17.3	6	1.44

※ Standard length : RS40P-1.016m(80links)/RS60P-1.010m(53links)
