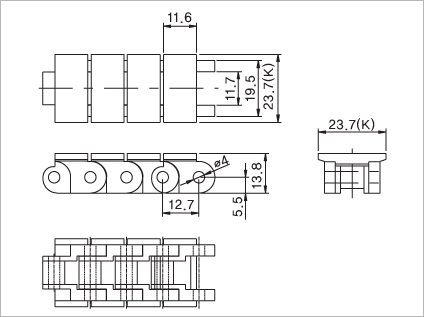

RS40P(PLATE TYPE)

SEE PAGE 125
CHAIN
TYPE		 CODE.
NO		 MATERIAL PLATE
WIDTH
(K)		 WORKING
LOAD
(MAX)		 WEIGHT
PLATE PIN MM INCH N kg/M
RS40P
PLATE		 1133 ACETAL STAIN-
LESS
STEEL		 23.7 0.93 450 0.4
※ Standard length : 3.048m-10feet(120links)
