FREEFLOW TOP CHAIN

CLIP TOP CHAIN의 장점
· 체인과 체인 사이에 틈새가 없어서 이물질이 끼지 않는다.
· 수지부상면의두께를최소화하여서저중량이송에적합합니다.
· 철체인, 스텐체인, 무급유체인, 기타 등등에 적용된다.
· 부분파손시보완이가능하고체인노출이없어서산업재해를예방한다.
· 한방향(정회전)으로만사용이가능한체인이다.

PROS OF CLIP TOP CHAIN
· Eliminating the gap between chains prevents foreign substances from being caught
· Minimizing the thickness of resin top makes it suitable for low weight transportation.
· Implemented on steel chain, stainless steel chain, unlubricated chain, etc.
· Capable of supplementing the system at partial damage and enclosed chain design prevents industrial accidents.
· Can only be used in one-way (forward) operation.

HP TYPE의 장점

고성능의내부윤활, 일반아세탈재질에비해마모성을40%감소 LF재료보다 매우 낮은 마모율,건조한 상태 운전 시 마모감소, · 고속 운전 사용 시 적합

PROS OF HP TYPE

High-performance internal lubrication, reduces wear property by 40% over regular acetal materials. Significantly low wear over LF materials Reduced wear under dry operation conditions, suited for high-speed operation

■ FREEFLOW TOP CHAIN의 종류

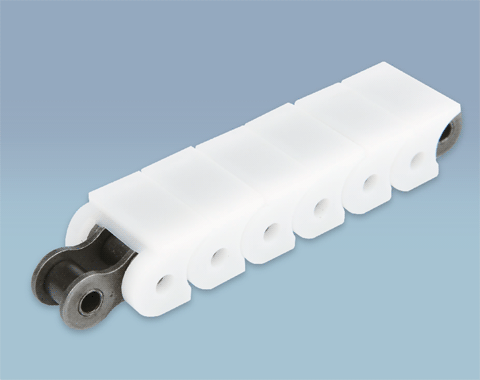

CT40

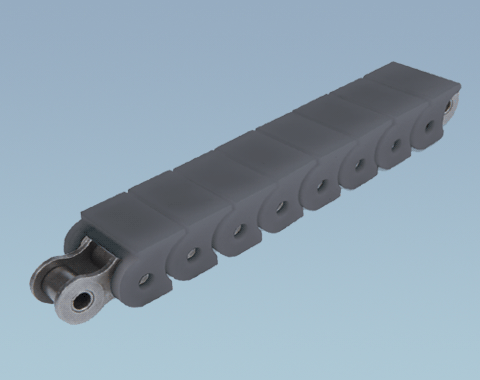

CT40(HP TYPE)

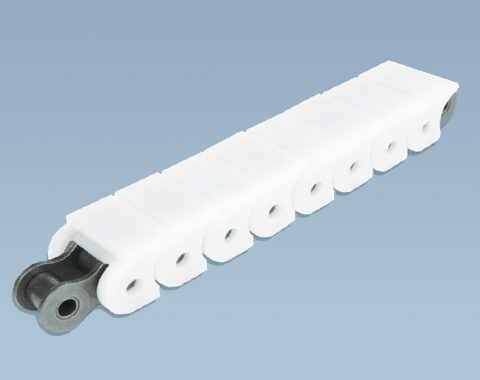

CT60

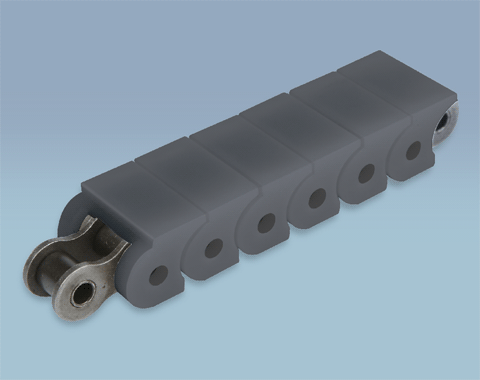

CT60(HP TYPE)

CHAIN TYPE	CODE. NO	P	H	B	N	F	T	WORK- ING LOAD (MAX)/N	WEIGHT (kg/M)
CT40	5521	12.7	9	23.5	12.2	7	2	3630	0.65
CT40(HP)	5521-HP	12.7	9	23.5	12.2	7	2	3630	0.65
CT60	5522	19.05	13.5	35.5	18.5	10.5	3	8825	1.94
CT60(HP)	5522-HP	19.05	13.5	35.5	18.5	10.5	3	8825	1.94

※ Standard length : CT40-3.048m(240links) / CT60-3.048m(160links)
