| CHAIN TYPE |
CODE.NO | CHAIN WIDTH(K) |
WEIGHT kg/M |
|---|---|---|---|
| MM | LF | ||

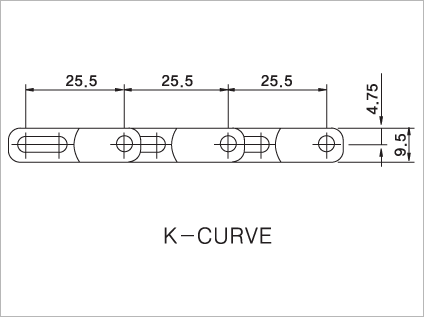

| K-curve - K06 K-curve - K12 K-curve - K18 K-curve - K24 K-curve - K30 K-curve - K36 K-curve - K42 K-curve - K48 K-curve - K54 K-curve - K60 K-curve - K66 K-curve - K72 |
3300 3301 3302 3303 3304 3305 3306 3307 3308 3309 3310 3311 |
152 305 457 610 762 914 1067 1219 1372 1524 1676 1829 |
0.8 1.6 2.4 3.2 4.0 4.8 5.6 6.4 7.2 8.0 8.8 9.6 |
| TEETH | CODE.NO | Pitch Diameter (mm) |
Out Diameter (mm) |
Hub Width (mm) |
Round Bore (mm) |
|---|---|---|---|---|---|
| 7 | 1661 | 58.67 | 59 | 38 | 25 to 30 |
| 9 | 1662 | 74.26 | 75 | 38 | 25 to 30 |
| 15 | 1663 | 122.17 | 122.5 | 38 | 25 to 30 |
