NET TOP CHAIN SERIES 800

FLAT TOP, 0% Open Area(Color : White , Gray)

USDA approved(Meat and Poultry, and Dairy)

SEE PAGE 123

HT : Polypropylene

CHAIN TYPE	CODE.NO	CHAIN WIDTH(K)	WEIGHT kg/M
CHAIN TYPE	CODE.NO	MM	LF
HT 800-K06 HT 800-K12 HT 800-K18 HT 800-K24 HT 800-K30 HT 800-K36 HT 800-K42 HT 800-K48 HT 800-K54 HT 800-K60 HT 800-K66 HT 800-K72	3124 3125 3126 3127 3128 3129 3130 3131 3132 3133 3134 3135	152 305 457 610 762 914 1067 1219 1372 1524 1676 1829	1.25 2.50 3.75 5.00 6.25 7.50 8.75 10.00 11.25 12.50 13.75 15.00

※ Standard length : 1.016M (20links)

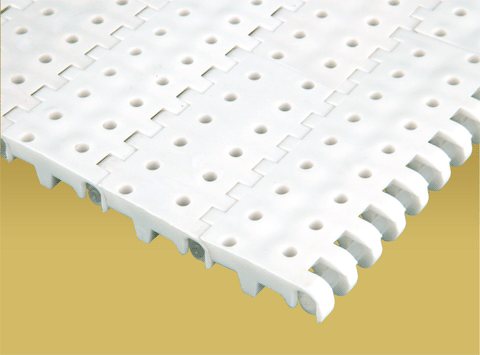

PERFORATED FLAT TOP, 18% Open Area(Color : White , Gray)

USDA approved(Meat and Poultry, and Dairy)

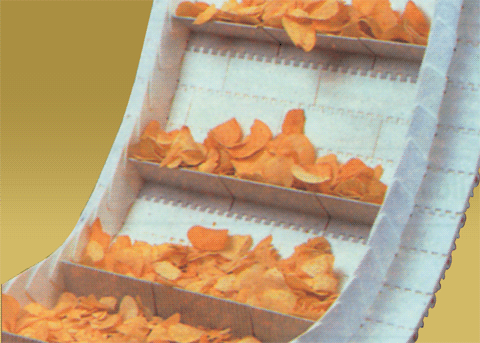

SERIES 800 BELT STREAMLINE FLIGHTS

※ 아다치먼트 높이 : 3인치, 2인치
아다치먼트기장 : 2″ 4″ 6″

HT : Polypropylene

CHAIN TYPE	CODE.NO	CHAIN WIDTH(K)	WEIGHT kg/M
CHAIN TYPE	CODE.NO	MM	LF
HT 800-K06 HT 800-K12 HT 800-K18 HT 800-K24 HT 800-K30 HT 800-K36 HT 800-K42 HT 800-K48 HT 800-K54 HT 800-K60 HT 800-K66 HT 800-K72	3024 3025 3026 3027 3028 3029 3030 3031 3032 3033 3034 3035	152 305 457 610 762 914 1067 1219 1372 1524 1676 1829	1.50 2.30 3.45 4.60 5.75 6.90 8.05 9.20 10.35 11.50 12.65 13.80

※ Standard length : 1.016M (20links)
