FOR PLASTIC CHAIN SPROCKET MC 가공일체형(ONE BODY TYPE)

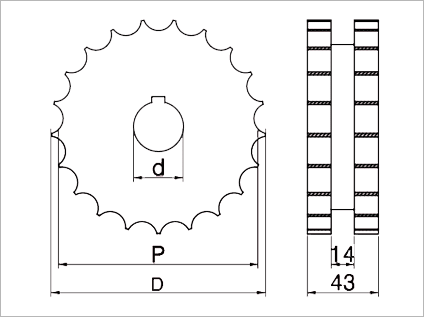

FOR SINGLE HINGE CHAIN

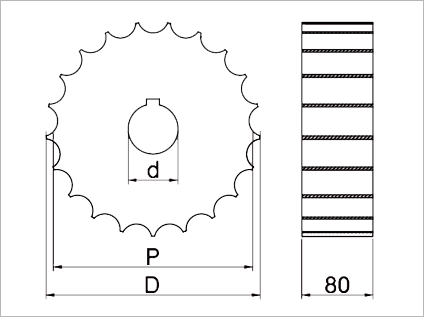

FOR DOUBLE HINGE CHAIN

CHAIN TYPE	TEETH	BORE (d)	CODE. NO	PITCH DIAMETER (P)M M	OUTSIDE DIAMETER (D)M M	WEIGHT Kg/EA
CHAIN TYPE	TEETH	MM	CODE. NO	PITCH DIAMETER (P)M M	OUTSIDE DIAMETER (D)M M	WEIGHT Kg/EA
P/L CHAIN single hinge chain	15T	25 30 35	5055 5056 5057	93.6	93	0.23
	17T	25 30 35	5058 5059 5060	105.4	104.5	0.31
	19T	25 30 35	5067 5068 5069	117.0	117	0.40
	21T	25 30 35	5070 5071 5072	129.26	129.5	0.56
	23T	25 30 35	5073 5074 5075	141.22	142	0.64
	25T	25 30 35	5076 5077 5078	153.21	154.2	0.75
DOUBLE Hinge chain (P/L,SUS 공용)	19T	25 30 35	1531 1532 1533	117.0	117	0.81
	21T	25 30 35	1534 1535 1536	129.26	129.5	1.02
	23T	25 30 35	1537 1538 1539	141.22	142	1.22
	25T	25 30 35	1654 1655 1656	153.21	154.2	1.45

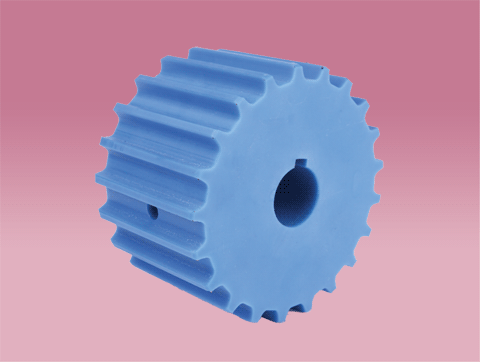

Material : Mono cast Nylon
color : blue

■ MC Nylon Sprocket의 장점
* 마모와 부하에 잘 견디며 수명이 길다.
* 메이커별 일정하지 않은 체인 pitch를 잘 흡수한다.

■ PROS OF MC NYLON SPROCKET
* It is resistant to wear and load.
* It absorbs chain pitch well although chain pitch is difeerent by brands.
