FOR SUS CHAIN SPROCKET MC 가공일체형(ONE BODY TYPE)

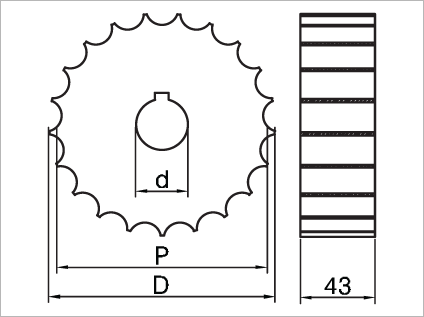

FOR SINGLE HINGE CHAIN

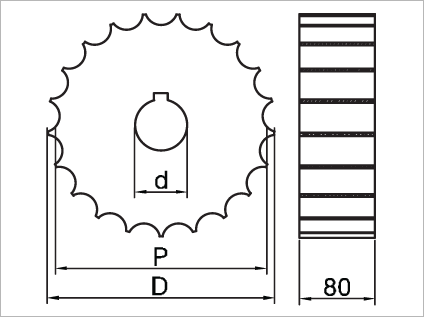

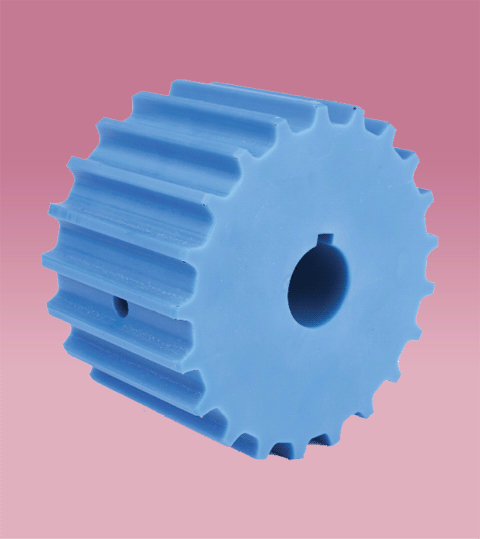

FOR DOUBLE HINGE CHAIN

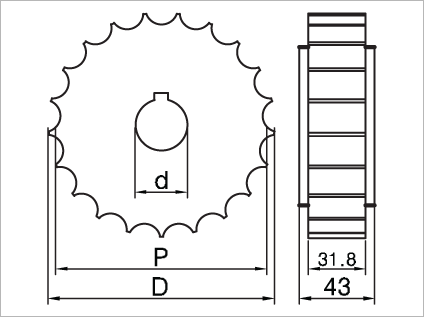

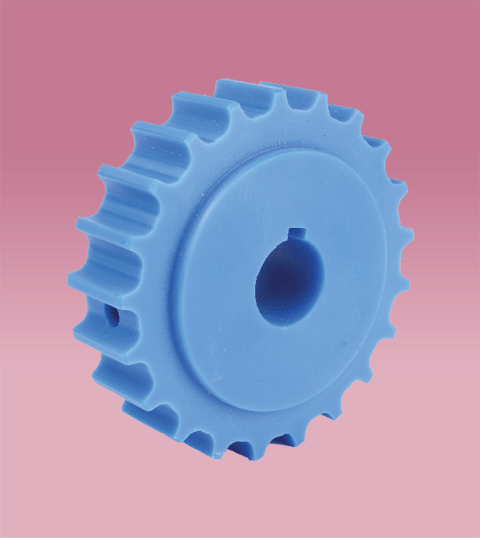

FOR TAB/BEV CHAIN

CHAIN TYPE	TEETH	BORE (d)	CODE. NO	PITCH DIAMETER (P)M M	OUTSIDE DIAMETER (D)M M	WEIGHT Kg/EA
CHAIN TYPE	TEETH	MM	CODE. NO	PITCH DIAMETER (P)M M	OUTSIDE DIAMETER (D)M M	WEIGHT Kg/EA
SUS CHAIN single hinge chain	15T	25 30 35	5061 5062 5063	93.6	93	0.24
	17T	25 30 35	5064 5065 5066	105.4	104.5	0.32
	19T	25 30 35	1441 1442 1443	117.0	117	0.41
	21T	25 30 35	1444 1445 1446	129.26	129.5	0.57
	23T	25 30 35	1447 1448 1449	141.22	142	0.65
	25T	25 30 35	1451 1452 1453	153.21	154.2	0.76
DOUBLE Hinge chain (P/L,SUS 공용)	19T	25 30 35	1531 1532 1533	117.0	117	0.81
	21T	25 30 35	1534 1535 1536	129.26	129.5	1.02
	23T	25 30 35	1537 1538 1539	141.22	142	1.22
	25T	25 30 35	1654 1655 1656	153.21	154.2	1.45
TAB/BEV (TAB/BEB sus chain용)	19T	25 30 35	1454 1455 1456	117.0	117	0.34
	21T	25 30 35	1457 1458 1459	129.26	129.5	0.40
	23T	25 30 35	1461 1462 1463	141.22	142	0.50
	25T	25 30 35	1464 1465 1466	153.21	154.2	0.60

Material : Mono cast Nylon
color : blue

■ MC Nylon Sprocket의 장점
* 마모와 부하에 잘 견디며 수명이 길다.
* 메이커별 일정하지 않은 체인 pitch를 잘 흡수한다.

■ PROS OF MC NYLON SPROCKET
* It is resistant to wear and load.
* It absorbs chain pitch well although chain pitch is difeerent by brands.
