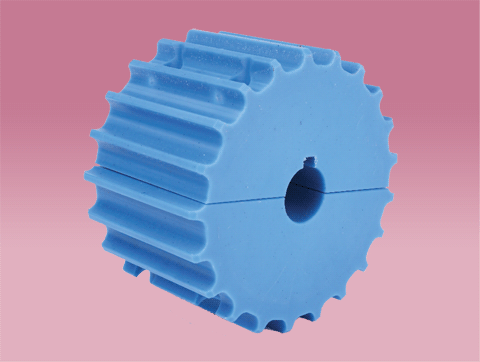

FOR PLASTIC CHAIN SPROCKET MC 가공분리형(SPLIT TYPE)

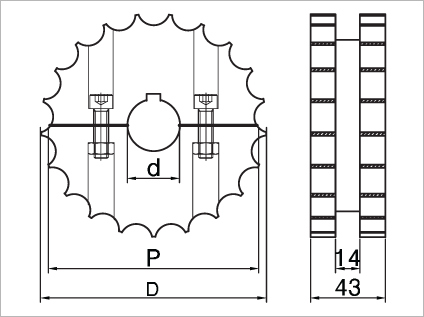

FOR SINGLE HINGE CHAIN

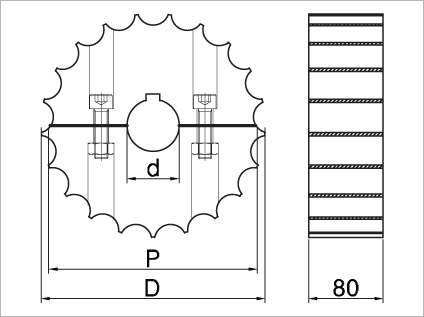

FOR DOUBLE HINGE CHAIN

CHAIN TYPE	TEETH	BORE (d)	CODE. NO	PITCH DIAMETER (P)M M	OUTSIDE DIAMETER (D)M M	WEIGHT Kg/EA
CHAIN TYPE	TEETH	MM	CODE. NO	PITCH DIAMETER (P)M M	OUTSIDE DIAMETER (D)M M	WEIGHT Kg/EA
P/L CHAIN single hinge chain	19T	25 30 35	5079 5080 5081	117.0	117	0.41
	21T	25 30 35	5082 5083 5084	129.26	129.5	0.57
	23T	25 30 35	5085 5086 5087	141.22	142	0.64
	25T	25 30 35	5088 5089 5090	153.21	154.2	0.76
DOUBLE Hinge chain (P/L,SUS 공용)	19T	25 30 35	1531 1532 1533	117.0	117	0.82
	21T	25 30 35	1534 1535 1536	129.26	129.5	1.03
	23T	25 30 35	1537 1538 1539	141.22	142	1.23
	25T	25 30 35	1654 1655 1656	153.21	154.2	1.46

Material : Mono cast Nylon
color : blue

■ MC Nylon Sprocket의 장점
* 마모와 부하에 잘 견디며 수명이 길다.
* 메이커별 일정하지 않은 체인 pitch를 잘 흡수한다.

■ PROS OF MC NYLON SPROCKET
* It is resistant to wear and load.
* It absorbs chain pitch well although chain pitch is difeerent by brands.
