FOR SUS CHAIN SPROCKET MC 가공분리형(SPLIT TYPE)

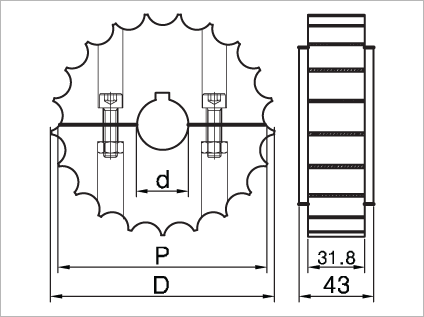

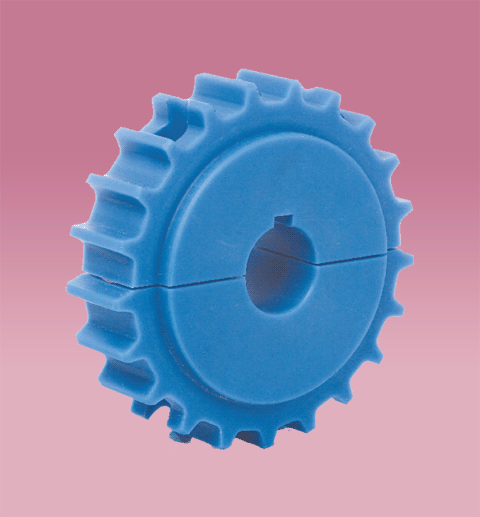

FOR SINGLE HINGE CHAIN

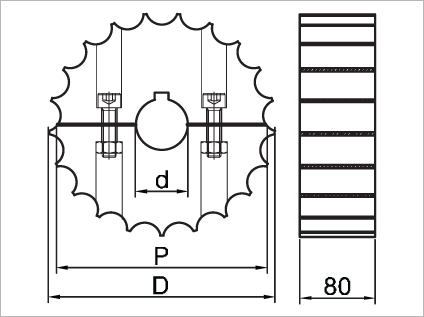

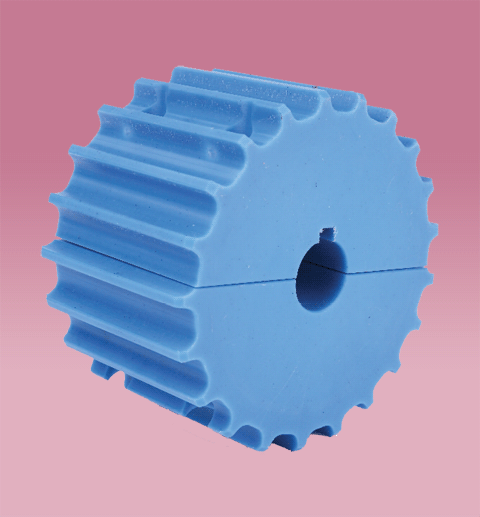

FOR DOUBLE HINGE CHAIN

FOR TAB/BEV CHAIN

CHAIN TYPE	TEETH	BORE (d)	CODE. NO	PITCH DIAMETER (P)M M	OUTSIDE DIAMETER (D)M M	WEIGHT Kg/EA
CHAIN TYPE	TEETH	MM	CODE. NO	PITCH DIAMETER (P)M M	OUTSIDE DIAMETER (D)M M	WEIGHT Kg/EA
SUS CHAIN single hinge chain	19T	25 30 35	1401 1402 1403	117.0	117	0.42
	21T	25 30 35	1404 1405 1406	129.26	129.5	0.58
	23T	25 30 35	1407 1408 1409	141.22	142	0.65
	25T	25 30 35	1411 1412 1413	153.21	154.2	0.77
DOUBLE Hinge chain (P/L,SUS 공용)	19T	25 30 35	1414 1415 1416	117.0	117	0.82
	21T	25 30 35	1417 1418 1419	129.26	129.5	1.03
	23T	25 30 35	1421 1422 1423	141.22	142	1.23
	25T	25 30 35	1424 1425 1426	153.21	154.2	1.46
TAB/BEV (TAB/BEB sus chain용)	19T	25 30 35	1427 1428 1429	117.0	117	0.35
	21T	25 30 35	1431 1432 1433	129.26	129.5	0.45
	23T	25 30 35	1434 1435 1436	141.22	142	0.55
	25T	25 30 35	1437 1438 1439	153.21	154.2	0.65

Material : Mono cast Nylon
color : blue

■ MC Nylon Sprocket의 장점
* 마모와 부하에 잘 견디며 수명이 길다.
* 메이커별 일정하지 않은 체인 pitch를 잘 흡수한다.

■ PROS OF MC NYLON SPROCKET
* It is resistant to wear and load.
* It absorbs chain pitch well although chain pitch is difeerent by brands.
