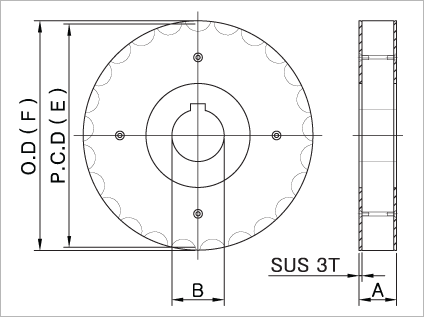

| TEETH | CODE. NO |
BORE | PITCH DIAMETER (P)M M |
OUTSIDE DIAMETER (D)M M |
WIDTH |
|---|---|---|---|---|---|
| B(mm) | E(mm) | F(mm) | A(mm) | ||
| 19T |
5001 |
25 |
117 | 117 | 28.5 |
| 21T | 5002 | 129.26 | 129.5 | ||
| 23T | 5003 | 141.22 | 142 | ||
| 25T | 5004 | 153.21 | 154.2 |
