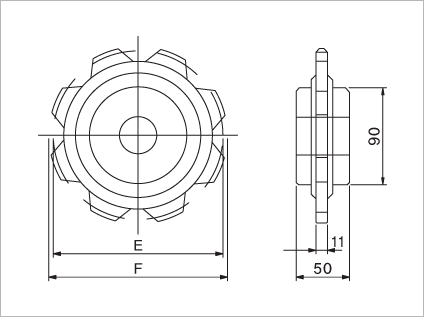

| CHAIN TYPE | CODE.NO | TEETH | PITCH DIAMETER(E) |
OUTSIDE DIAMETER(F) |
|---|---|---|---|---|
| A600S A600CT |
1601 | 8 | 161.5 | 165.1 |
1602 |
10 | 200.1 |
206.6 | |
| 1603 | 12 | 239.0 | 247.6 | |
| 1604 | 14 | 278.1 | 292.1 | |
| A1400CT | 1605 | 10 | 266.9 | 295.3 |
