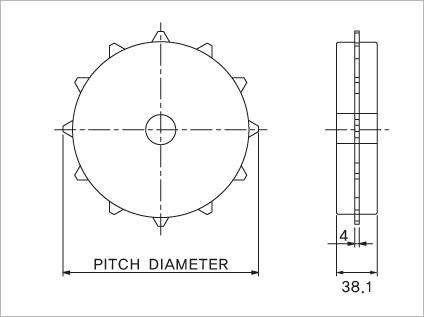

| TEETH | CODE.NO | Pitch Diameter inches (mm) |
Out Diameter inches (mm) |
Hub Diameter inches (mm) |
Round Bore inches (mm) |
Square Bore inches (mm) |
|---|---|---|---|---|---|---|
| 6 | 1623 | 4.0 (101.6) |
3.6 (91) |
1.5 (38.1) |
1.5 (38.1) |
|
| 8 | 1624 | 5.2 (132.1) |
5.0 (127) |
1.5 (38.1) |
1.5 (38.1) |
|
| 2.5 (63.5) |
||||||
| 10 | 1625 | 6.4 (162.6) |
6.3 (160) |
1.5 (38.1) |
1.5 (38.1) |
|
| 2.5 (63.5) |
||||||
| 12 | 1626 | 7.8 (198.1) |
7.7 (196) |
1.5 (38.1) |
1.5 (38.1) |
|
| 2.5 (63.5) |
||||||
| 16 | 1627 | 10.1 (256.5) |
10.2 (259) |
1.5 (38.1) |
1.5 (38.1) |
|
| 2.5 (63.5) |
||||||
| 3.5 (88.9) |
