ARTICULATED FOOT

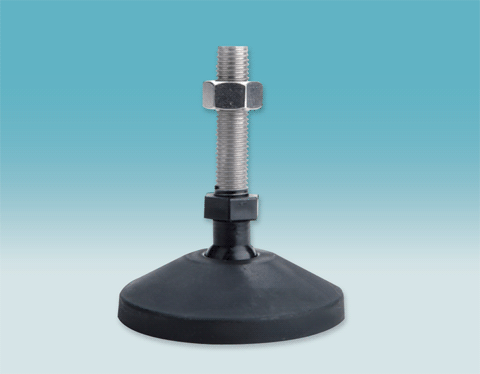

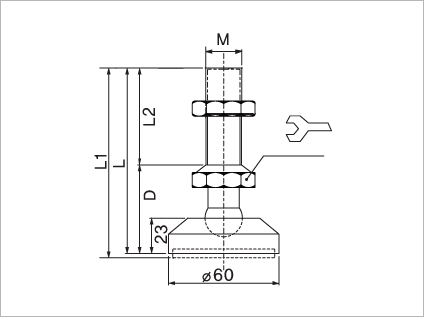

ARTICULATED FOOT

Material : Basement in reinforced polyamide threaded spindle as in the table Antivibration version with oil resrstant rubber hardness 70 shore

FOOT TYPE	CODE.NO	MATERIAL SPINDLE	M	L1	L	L2	D
FOOT TYPE	CODE.NO	MATERIAL SPINDLE	MM	MM	MM	MM	MM
ZN 60-100 ZN 60-150 ZN 60-200	1911 1912 1913	ZN.FE ZN.FE ZN.FE	16 16 16	109 158 207	107 156 205	56 105 154	51 51 51
SS 60-100 SS 60-150 SS 60-200	1914 1915 1916	STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL	16 16 16	109 158 207	107 156 205	56 105 154	51 51 51

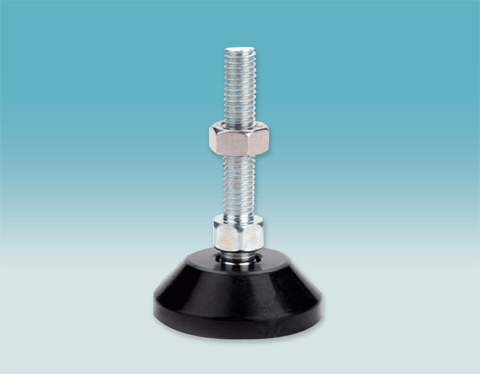

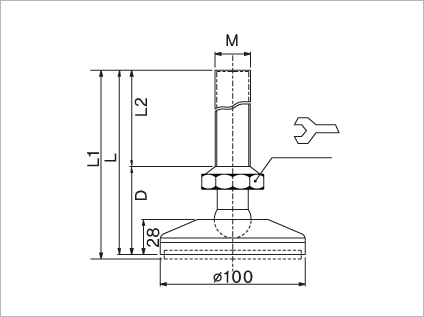

ARTICULATED FOOT

Material : Basement in reinforced polyamide without rubber

FOOT TYPE	CODE.NO	MATERIAL SPINDLE	M	L1	L	L2	D
FOOT TYPE	CODE.NO	MATERIAL SPINDLE	MM	MM	MM	MM	MM
ZN 100-100 ZN 100-150 ZN 100-200	1917 1918 1919	ZN.FE ZN.FE ZN.FE	16 16 16	109 158 207	107 156 205	56 105 154	51 51 51
SS 100-100 SS 100-150 SS 100-200	1920 1921 1922	STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL	16 16 16	109 158 207	107 156 205	56 105 154	51 51 51

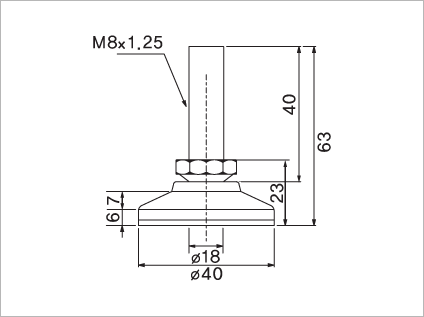

MINI FOOT

Material : Basement in reinforced polyamide

CODE.NO

1923
