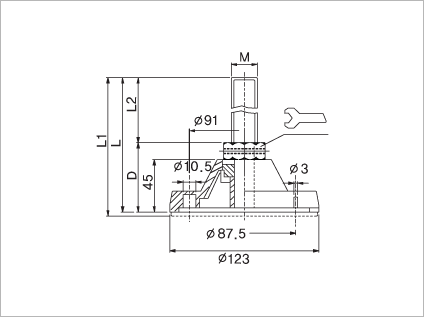

| FOOT TYPE | CODE.NO | MATERIAL SPINDLE |
M | L1 | L | L2 | D |
|---|---|---|---|---|---|---|---|
| MM | MM | MM | MM | MM | |||
| ZN 123-150 ZN 123-200 ZN 123-250 |
1924 |
ZN.FE ZN.FE ZN.FE |
16 20 |
155 205 255 |
150 200 250 |
90 140 190 |
60 |
| SS 123-150 SS 123-200 SS 123-250 |
1927 1928 1929 |
STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL |
16 20 |
155 205 255 |
150 200 250 |
90 140 190 |

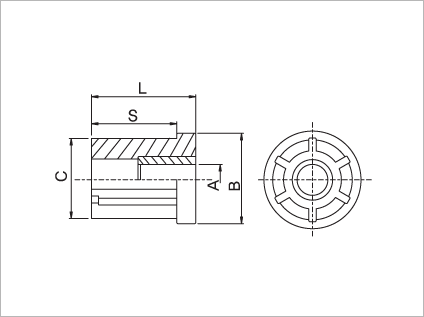

| CODE.NO | 1988 | 1989 |
|---|---|---|
| A | M16 | M16 |
| B | 60 | 50 |
| C | 55 | 46.5 |
| S | 39 | 34 |
| L | 51 | 45 |
