POSITION OF TRANSFER MODULES

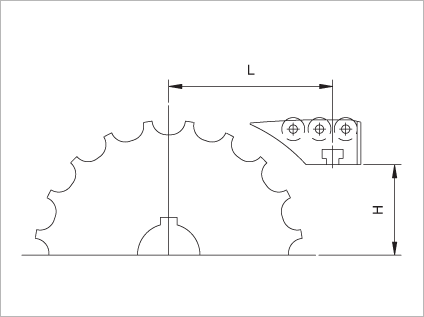

● position transfer H,L

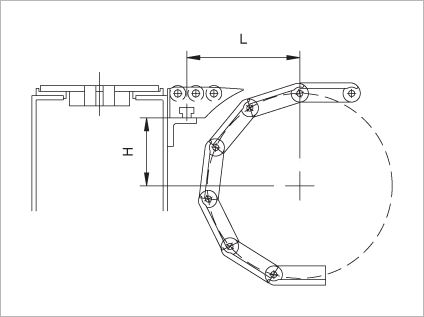

● 90도 transfer 1 modules

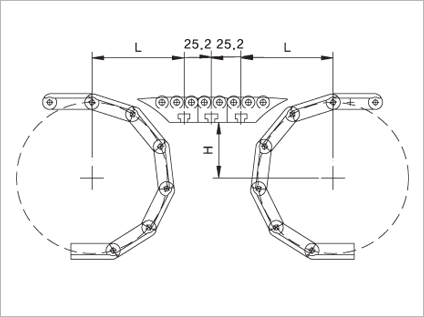

● transfer 2 modules

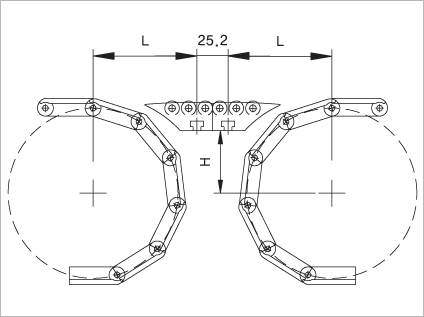

● transfer 3modules

Table Top
Chain		 T19 T21 T23 T25 T27 T29
H L H L H L H L H L H L
SS31.8S-44.5-63.5
-82.6-101.6S		 42.8
 67 48.7
 68.1 54.7 69.2 60.7 70.2 66.7 71.2 72.7 72.2 72.2 72.2
SS114.3S-152.4-190.5S 42.8
 67 48.7
 68.1 54.7 69.2 60.7 70.2 66.7 71.2 72.7 72.2
SS82.6(CT/CB/CM)
-114.3-190.5		 42.8
 67 48.7
 68.1 54.7 69.2 60.7 70.2 66.7 71.2 72.7 72.2
P63.5S-82.6-101.6
-114.3-152.4-190.5S		 43.4 67.9 49.3
 69 55.3 70.1 61.3 71.2 67.3 72.2 73.3 73.2
LBP82.6S-190.5S 58.7 69.8 64.6 70.9 70.6 71.8 76.6 72.8
SP82.6CT-114.3
-152.4-190.5CT		 49.7
 71.2 55.7 72.4 61.8 73.6 67.8 74.7
SP63.5S-82.6-114.3S 49.7
 71.2 55.7
 72.4 61.8 73.6 67.8 74.7
SP34.9S-50.8S 26 66 30 66.9 34 67.9 38.1 68.8


  T10 T11 T12 T13 T15
  H L H L H L H L H L
P82.6CT-114.3CT 46.7 67.7 52.7 68.8 58.7 69.9 64.7 70.9 76.7 72.8
P190.5CHT-254.0-304.8CHT 48.6 68.1 54.6 69.1 60.6 70.2
LBP95.3CHT-190.5
-254.0-304.8CHT		 63.1 70.6 69.1 71.6 75.1 72.5

Net Top Chain T10 T14 T16 T18 T20 T24 T25
H L H L H L H L H L H L H L
S5935-5936 13 60.4                 55.6 69.3 58.6 69.8
