이미지를 클릭 하시면 해당제품을 보실 수 있습니다.
CORNER TRACKS
BEVELFLEX
CORNER TRACKS
(SPLIT TYPE)TABFLEX
CORNER TRACKS (ONE BODY TYPE)TABFLEX
CORNER TRACKS MAGNETFLEX
STRAIGHT TRACKS (SPLIT TYPE)TABFLEX

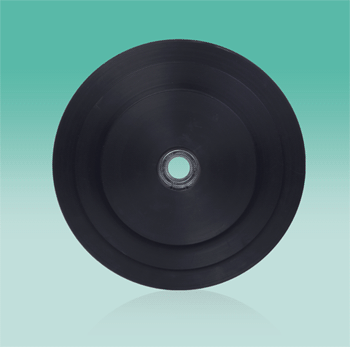

CORNER DISCS FOR
PLASTIC CHAINS

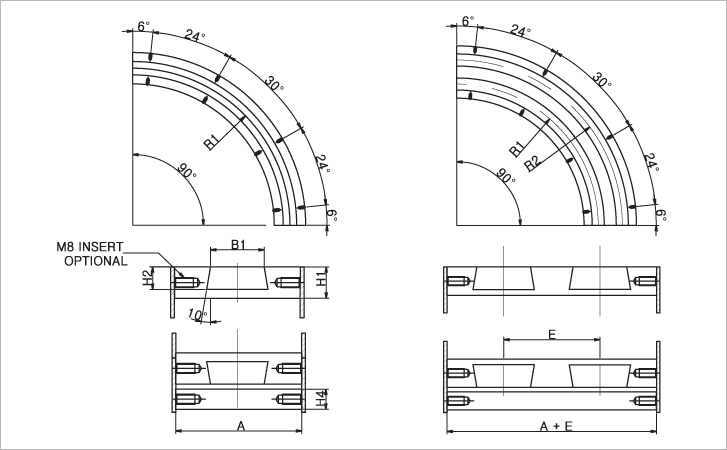

SINGLE STANDARD



 DOUBLE STANDARD



SINGLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH B1 H1 H2 H4 RADIUS A
R1
P826CB

1801

 100 41.4 25 18 16 500 100
SS826CB
SS1143CB 1802
 125 610 125
SS1905CB 1803 200 610 200

DOUBLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH B1 H1 H2 H4 RADIUS E A
R1 R2
P826CB

1804

 185 41.4 25 18 16 500 585 85 100
SS826CB
SS1143CB 1805
 245 610 730 120 125
SS1905CB 1806 395 610 805 195 200

TRIPLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH B1 H1 H2 H4 RADIUS E A
R1 R2 R3
P826CB

1807

 270 41.4 25 18 16 500 585 670 85 100
SS826CB
