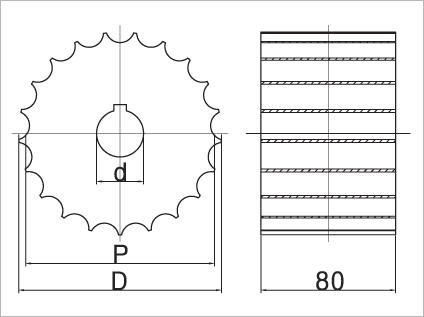

| TEETH | BORE (d) |
CODE.NO | PITCH DIAMETER(P) |
OUTSIDE DIAMETER(D) |
WEIGHT |
|---|---|---|---|---|---|
| MM | MM | MM | kg/EA | ||
| 19 |
25 |
1531 1532 1533 |
117.0 |
117 | 0.80 |
| 21 | 25 30 35 |
1534 1535 1536 |
129.26 | 129.5 | 1.02 |
| 23 | 25 30 35 |
1537 1538 1539 |
141.22 | 142 | 1.22 |
| 25 | 25 30 35 |
1654 1655 1656 |
153.21 | 154.2 | 1.45 |

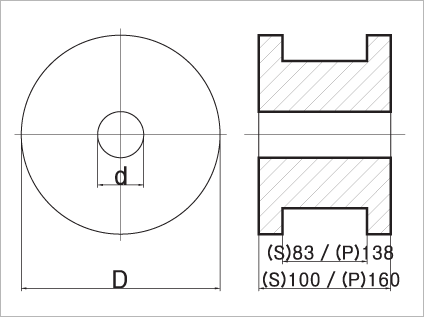

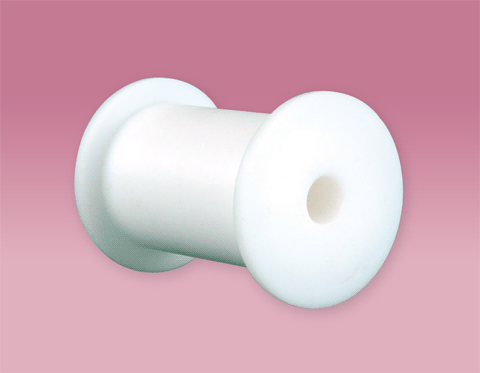

| FOR TEETH | BORE (d) |
CODE.NO (SUS CHAIN / PLASTIC CHAIN) |
OUTSIDE DIAMETER(D) |
WEIGHT |
|---|---|---|---|---|
| MM | MM | kg/EA | ||
| 19 |
25 |
1711-S / 1711-P 1712-S / 1712-P 1713-S / 1713-P |
117 |
0.72 |
| 21 | 25 30 35 |
1714-S / 1714-P 1715-S / 1715-P 1716-S / 1716-P |
129 | 0.78 |
| 23 | 25 30 35 |
1717-S / 1717-P 1718-S / 1718-P 1719-S / 1719-P |
141 | 0.92 |
| 25 | 25 30 35 |
1674-S / 1674-P 1675-S / 1675-P 1676-S / 1676-P |
153 | 1.12 |
