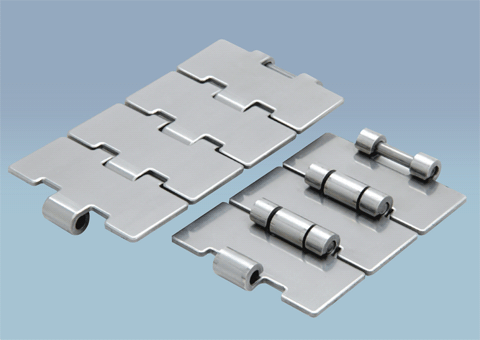

| CHAIN TYPE |
CODE. NO |

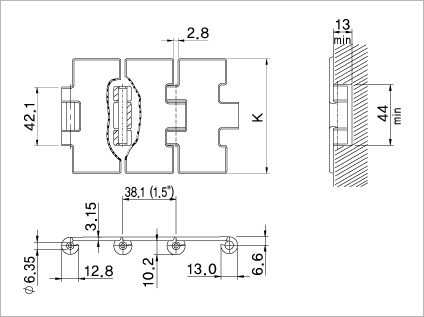

MATERIAL | PLATE WIDTH (K) |
WORKING LOAD (MAX) |
BACKFLEX RADIUS (MIN) |
WEI- GHT |
||
|---|---|---|---|---|---|---|---|---|
| PLATE | PIN | MM | INCH | N | R | kg/M | ||
| SS635S SS826S SS1016S SS1143S SS1524S SS1905S |
1155 1156 1157 1158 1159 1160 |
STAINLESS STEEL |
63.5 82.6 101.6 114.3 152.4 190.5 |
2.50 3.25 4.00 4.50 6.00 7.50 |
4950 4950 4950 4950 4950 4950 |
75 75 75 75 75 75 |
2.20 2.60 3.00 3.30 4.10 5.00 |
|
