FOR PLASTIC HEAVY DUTYFLEX CHAINS

SEE PAGE 17, 40

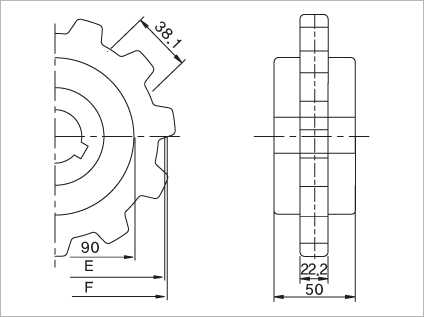

■ MODU-SPROCKET
Material : Mono Cast Nylon
TEETH BORE CODE.NO PITCH
DIAMETER(E)		 OUTSIDE
DIAMETER(F)		 WEIGHT
MM MM MM kg/EA
10

25
30
35

 1581
1582
1583		 123.3
 122 0.48
11 25
30
35		 1584
1585
1586		 135.2 134 0.53
12 25
30
35		 1587
1588
1589		 147.2 146 0.60

SEE PAGE 17, 40

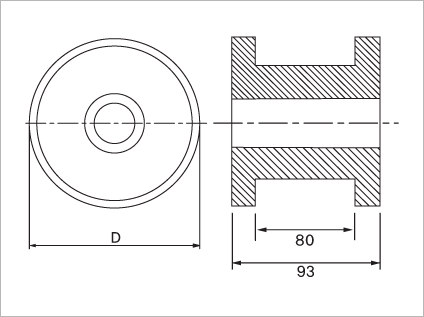

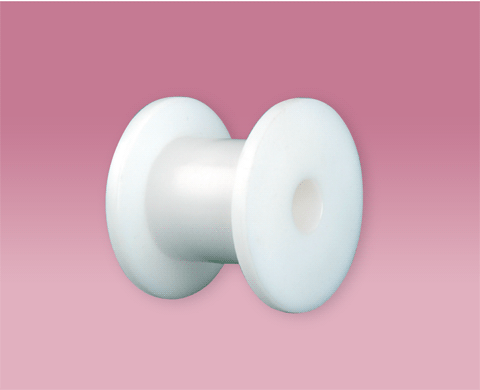

■ COMBI-IDLER
Material : Polyethylene
FOR TEETH BORE CODE.NO OUTSIDE
DIAMETER(D)		 WEIGHT
MM MM kg/EA
10

25
30
35

 1741
1742
1743		 122
 0.72
11 25
30
35		 1744
1745
1746		 134 0.78
12 25
30
35
 1747
1748
1749		 146 0.92
