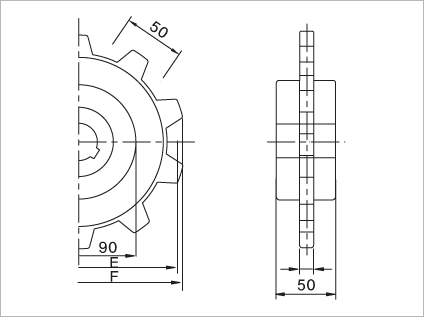

| TEETH | BORE | CODE.NO | PITCH DIAMETER(E) |
OUTSIDE DIAMETER(F) |
WEIGHT |
|---|---|---|---|---|---|
| MM | MM | MM | kg/EA | ||
| 8 | 25 30 35 |
1641 1642 1643 |
130.8 | 136 | 0.36 |
| 10 |
25 |
1591 1592 1593 |
161.8 |
165 | 0.48 |
| 12 | 25 30 35 |
1594 1595 1596 |
193.2 | 196 | 0.60 |
| 14 | 25 30 35 |
1597 1598 1599 |
224.7 | 227 | 0.75 |

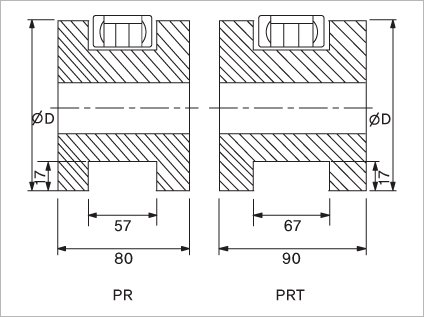

| FOR TEETH | BORE | CODE.NO | OUTSIDE DIAMETER(D) |
WEIGHT | |
|---|---|---|---|---|---|
| MM | PR | PRT | MM | kg/EA | |
| 8 | 25 30 35 |
1677 1678 1679 |
1644 1645 1646 |
136 | 1.0 |
| 10 |
25 |
1751 1752 1753 |
1761 1762 1763 |
165 |
1.8 |
| 12 | 25 30 35 |
1754 1755 1756 |
1764 1765 1766 |
196 | 2.6 |
| 14 | 25 30 35 |
1757 1758 1759 |
1767 1768 1769 |
227 | 3.2 |
