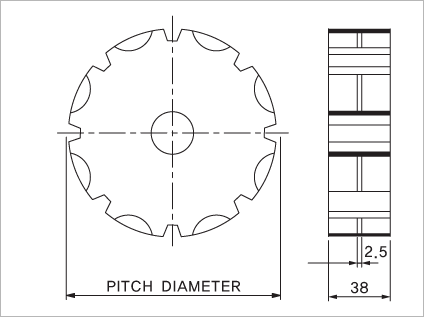

| TEETH | CODE.NO | Pitch Diameter inches (mm) |
Out Diameter inches (mm) |
Hub Diameter inches (mm) |
Round Bore inches (mm) |
Square Bore inches (mm) |
|---|---|---|---|---|---|---|
| 8 | 1633 | 5.2 (132) |
5.0 (127) |
1.5 (38) |
1.5 (40) |
|
| 10 | 1634 | 6.5 (165) |
6.2 (157) |
1.5 (38) |
1.5/2.5 (40/60) |
|
| 12 | 1635 | 7.7 (196) |
7.5 (191) |
1.5 (38) |
1.5/2.5 (40/60) |
