FOR PLASTIC SINGLE HINGE CHAINS

SEE PAGE 13, 18, , 39

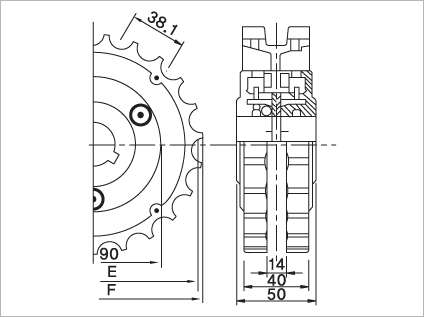

■ MODU-SPROCKET

Material : polyamide
zinc plated steel screw
or stainless steel screw
KEY : 8 × 7

TEETH	BORE	CODE.NO	PITCH DIAMETER(E)	OUTSIDE DIAMETER(F)	WEIGHT
TEETH	MM	CODE.NO	MM	MM	kg/EA
19	25 30 35	1561 1562 1563	117.0	117	0.40
21	25 30 35	1564 1565 1566	128.9	129	0.56
23	25 30 35	1567 1568 1569	140.8	141	0.65

SEE PAGE 8, 9, 13, 18, 39

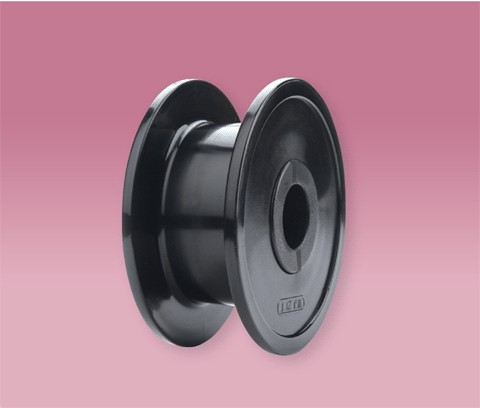

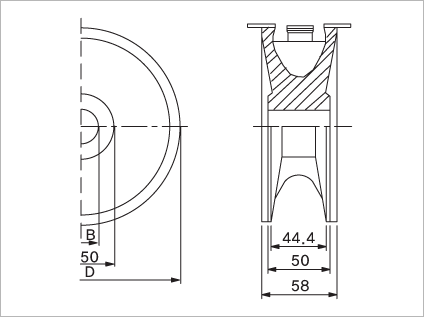

■ COMBI-IDLER

Material : Polyamide

FOR TEETH	BORE (B)	CODE.NO	OUTSIDE DIAMETER(D)	WEIGHT
FOR TEETH	MM	CODE.NO	MM	kg/EA
19	25 30 35	1701 1702 1703	117	0.36
21	25 30 35	1704 1705 1706	129	0.39
23	25 30 35	1707 1708 1709	141	0.46
25	25 30 35	1671 1672 1673	153	0.54
