| CHAIN TYPE |
CODE. NO |
MATERIAL | PLATE WIDTH (K) |
WORK- ING LOAD (MAX) |
BACK- FLEX RADIUS (MIN) |
WEI- GHT |
||
|---|---|---|---|---|---|---|---|---|
| PLATE | PIN | MM | INCH | N | MM | kg/M | ||

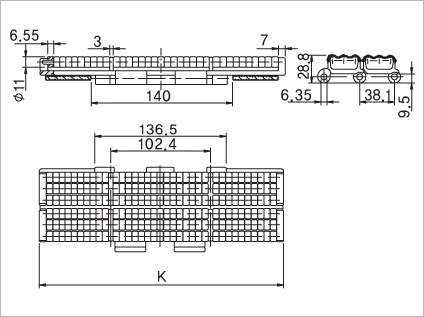

| LBP1905SW LBP2540SW LBP3048SW |
1138 1139 1140 |
ACETAL | STAIN- LESS STEEL |
190.5 254.0 304.8 |
7.50 10.0 12.0 |
2680 | 400 400 400 |
5.30 6.60 7.85 |
| CHAIN TYPE |
CODE. NO |
MATERIAL | PLATE WIDTH (K) |
WORK- ING LOAD (MAX) |
BACK- FLEX RADIUS (MIN) |
WEI- GHT |
||
|---|---|---|---|---|---|---|---|---|
| PLATE | PIN | MM | INCH | N | MM | kg/M | ||

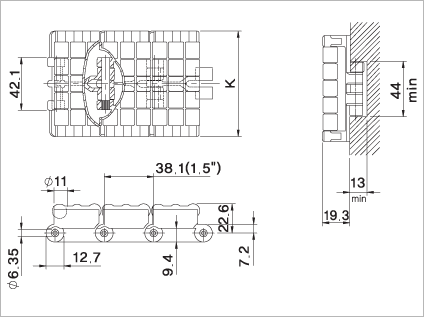

| LBP826S | 1137 | ACETAL | STAIN- LESS STEEL |
82.6 | 3.25 | 1230 | 400 | 2.20 |
