> 제품소개 > PLASTIC L.B.P CHAIN & CONVEYOR SECTION

Untitled Document
이미지를 클릭 하시면 해당제품을 보실 수 있습니다.

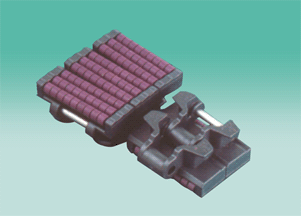

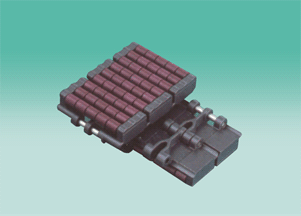

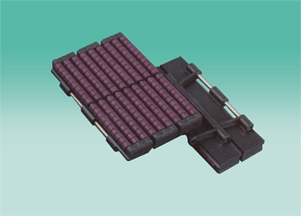

PLASTIC LBP SINGLE AND
DOUBLE HINGE CHAIN
PLASTIC LBP HEAVY
DUTY FLEX CHAIN

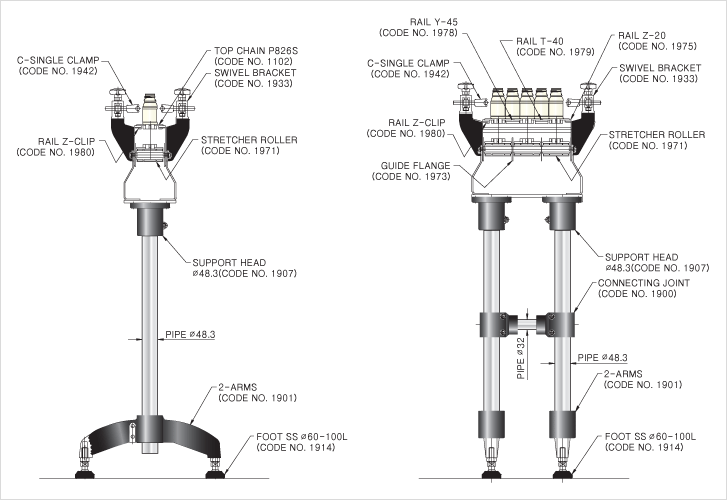

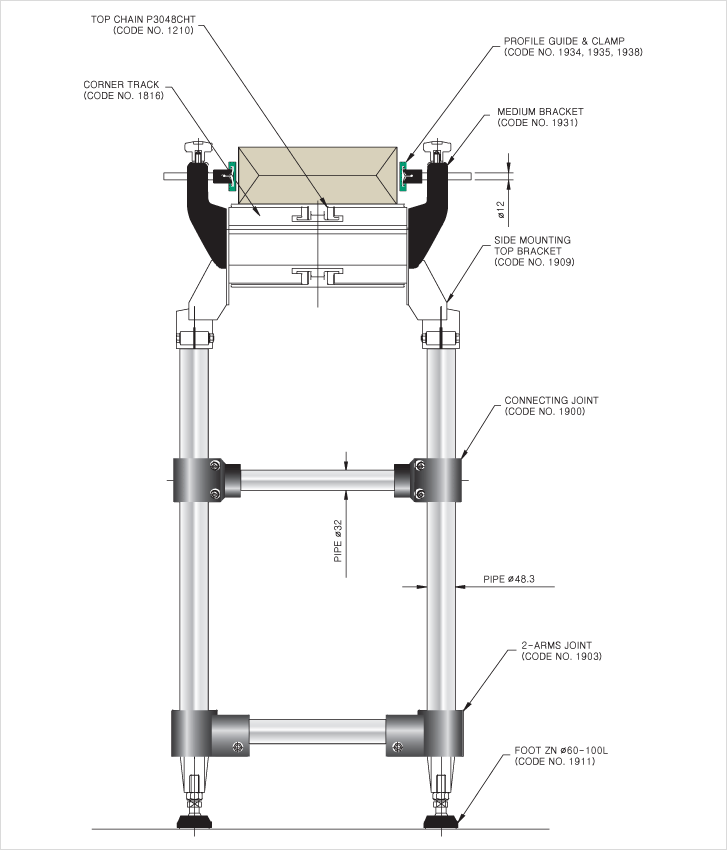

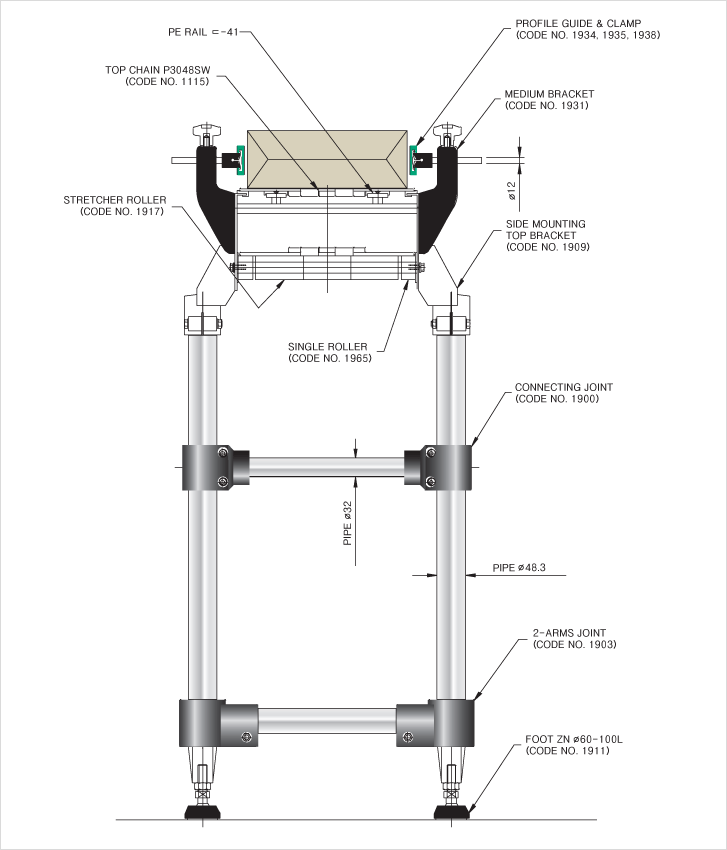

CONVEYOR SECTION
CONVEYOR SECTION
CONVEYOR SECTION



Untitled Document
Click

144

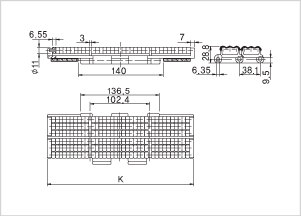

CHAIN TYPE CODE.NO MATERIAL PLATE
WIDTH(K) 		WORKING
LOAD(MAX) 		BACKFLEX
RADIUS(MIN)		 WEIGHT
PLATE PIN MM INCH N MM kg/M
LBP1905SW
LBP2540SW
LBP3048SW

1138
1139
1140

 ACETAL STAINLESS
STEEL		 190.5
254.0
304.8		 7.50
10.0
12.0		 2680 400
400
400		 5.30
6.60
7.85
※ Standard length : 3.048m-10feet(80links)




Untitled Document
Click

135,137,
140,143

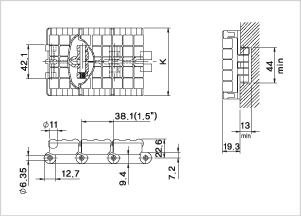

CHAIN TYPE CODE.NO MATERIAL PLATE
WIDTH(K) 		WORKING
LOAD(MAX) 		BACKFLEX
RADIUS(MIN)		 WEIGHT
PLATE PIN MM INCH N MM kg/M
LBP826S

1137

 ACETAL STAINLESS
STEEL		 82.6 3.25 1230 400 2.20
※ Standard length : 3.048m-10feet(80links)
