NET TOP CHAINS
NET TOP CHAIN
SERIES 5935
NET TOP CHAIN
SERIES 5936
NET TOP CHAIN
4803 SERIES
NET TOP CHAIN
SERIES 400S F.G TYPE
NET TOP CHAIN SERIES 400S R.R TYPE
NET TOP CHAIN
SERIES 800
NET TOP CHAIN SERIES 900 R.R TYPE(RAISED RIB)
NET TOP CHAIN SERIES 900 F.G(FLUSH GRID)
NET TOP CHAIN SERIES
900 FLAT TOP
SPROCKET - NET TOP CHAIN 900S
NET TOP CHAIN SERIES M1100(FLUSH GRID)
SPROCKET - NET TOP CHAIN M1100
NET TOP CHAIN SERIES M2520
SPROCKET - NET TOP CHAIN M2520
NET TOP CHAIN Àû¿ë»ç·Ê
NET TOP CHAIN SERIES
K-CURVE
NET TOP CHAIN SERIES
K-CURVE
NET TOP CHAIN
FINGER PLATE
NET TOP CHAIN
FLIGHTS / GUARDS


  72% Open Area
Material : LF Acetal (Gray)
CHAIN TYPE

CODE.NO

CHAIN
WIDTH(K)
WEIGHT
kg/M
MM LF

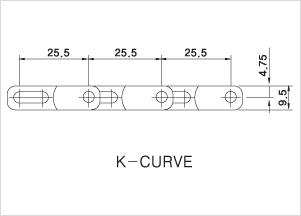

K-curve - K06
K-curve - K12
K-curve - K18
K-curve - K24
K-curve - K30
K-curve - K36
K-curve - K42
K-curve - K48
K-curve - K54
K-curve - K60
K-curve - K66
K-curve - K72
3300
3301
3302
3303
3304
3305
3306
3307
3308
3309
3310
3311
152
305
457
610
762
914
1067
1219
1372
1524
1676
1829
0.8
1.6
2.4
3.2
4.0
4.8
5.6
6.4
7.2
8.0
8.8
9.6
¡Ø Standard length : 1.020M (40links)

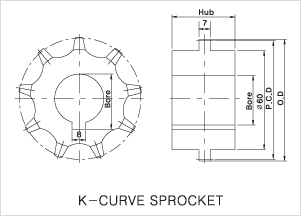

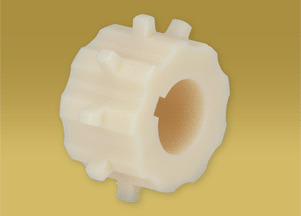

TEETH CODE.NO Pitch
Diameter(mm)
Out
Diameter(mm)
Hub
Width(mm)
Round
Bore
mm
7 1661 58.67 59 38 25 to 30
9 1662 74.26 75 38 25 to 30
15 1663 122.17 122.5 38 25 to 30
