FREE FLOW CONVEYOR
(¹è¼ÓüÀÎ) GUIDE RAIL
FREE FLOW CONVEYOR SECTION
CHAIN RETURN GUIDE SHOE
V.R.P(¹è¼Ó) CHAIN AND KOLO WHEEL
V.R.P CHAIN SPROCKET
AGING BRUSH
AGING BRUSH °¢ ºÎÀÇ
¸íĪ
ENGINEERING PLASTIC KOLO WHEEL

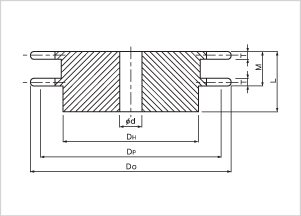

Sprocket No

Type

Number
of
Teeth
Pitch
Diameter
Dp
Outer
Diameter
Do
Tooth
Thickness
T
Pilot Bore
Diameter
d
Length
L
M Material Approximate
Weight
kg/piece
RF2040VRP-10T B 10 82.20 85 4.0 16 40 20.4 S45C 0.8
RF2050VRP-10T B 10 102.75 107 5.0 16 45 25.5 S45C 1.5
RF2060VRP-10T B 10 123.30 128 6.0 19 50 30.5 S45C 2.5
RF2080VRP-10T B 10 164.39 172 12.0 23 67 47.5 S45C 7.0
