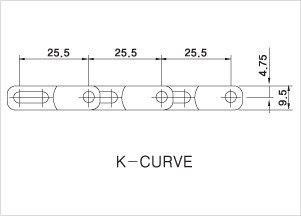

NET TOP CHAIN SERIES K-CURVE
NET TOP CHAIN SERIES K-CURVE
NET TOP CHAIN
FINGER PLATE


  72% Open Area
Material : LF Acetal (Gray)
CHAIN TYPE

CODE.NO

 CHAIN
WIDTH(K)		 WEIGHT
kg/M
MM LF
K-curve - K06
K-curve - K12
K-curve - K18
K-curve - K24
K-curve - K30
K-curve - K36
K-curve - K42
K-curve - K48
K-curve - K54
K-curve - K60
K-curve - K66
K-curve - K72		 3300
3301
3302
3303
3304
3305
3306
3307
3308
3309
3310
3311		 152
305
457
610
762
914
1067
1219
1372
1524
1676
1829		 0.8
1.6
2.4
3.2
4.0
4.8
5.6
6.4
7.2
8.0
8.8
9.6
※ Standard length : 1.020M (40links)

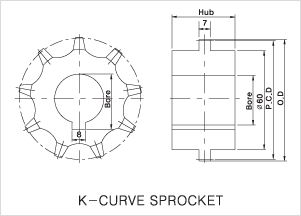

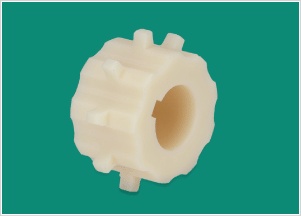

CHAIN TYPE TEETH Pitch
Diameter(mm) 		Out
Diameter(mm)		 Hub
Width(mm) 		Round
Bore
mm
1661 7 58.67 59 38 25 to 30
1662 9 74.26 75 38 25 to 30
1663 15 122.17 122.5 38 25 to 30
