PR1702 CHAIN
PR CHAIN
PRT CHAIN
PR1700 CHAIN
PR1700T CHAIN
1765ZERO CHAIN
PR2700T CHAIN
RETURN ROLLER
A600CT/A1400CT CHAIN
U-2500S CHAIN
U-2500S-ATT CHAIN




CHAIN TYPE CODE.NO MATERIAL PLATE
WIDTH(K) 		WORKING
LOAD(MAX) 		SIDEFLEX
RADIUS(MIN) 		BACKFLEX
RADIUS(MIN)		 WEIGHT
PLATE PIN MM INCH N R R kg/M

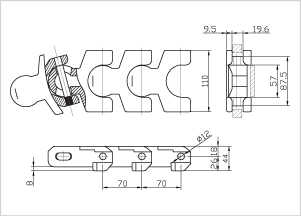

PR2700T

5501

 ACETAL STAINLESS
STEEL		 110 4.33 11000 250 200 4.4
※ Standard length : 2.520m(36links)

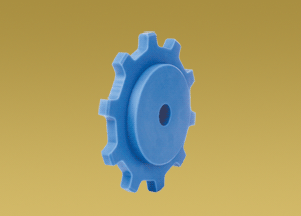

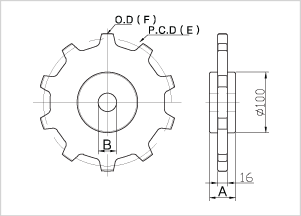

CODE.NO TEETH BORE PITCH
DIAMETER		 OUTSIDE
DIAMETER		 WIDTH
B(mm) E(mm) F(mm) A(mm)
5010

8T

 25
30
35 		182.9

183.4

 43
5011 10T 226.5 227
