RS 40P / 60P CHAIN
RS 40PW / 60PW CHAIN
RS 40P(HP TYPE) /
60P(HP TYPE) CHAIN
RS 40P(CRT TYPE) /
60P(CRT TYPE) CHAIN
RS 40P(AST TYPE) /
60P(AST TYPE) CHAIN
RS 2040P CHAIN
RS 40P(PLATE TYPE) CHAIN
PLASTIC COMBI CHAIN


Chemically resistanceÀÇ ÀåÁ¡   ³»È­Çмº´ÉÀ¸·Î ÀÎÇØ ¿ÜºÎ¾Ö¼­ À¯ÀԵǴ »ê, ¿°±â·Î ÀÎÇÑ ºÎ½ÄÀ» º¸¿ÏÇÑ Á¦Ç°

Untitled Document
Click

151

CHAIN TYPE

CODE.NO

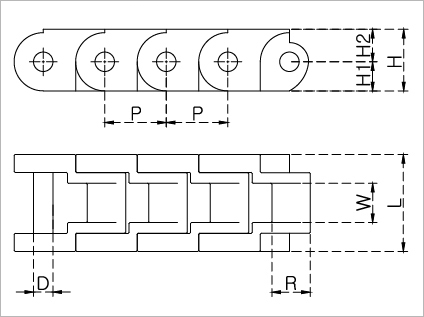

MATERIAL P R W L H1 H2 H D WEIGHT
PLATE PIN MM MM MM MM MM MM MM MM kg/M
RS40P-CRT 1131-CRT ACETAL STAINLESS
STEEL
12.7 7.94 7.95 20 6 6.7 12.7 4 0.36
RS60P-CRT 1132-CRT 19.05 11.91 12.7 30 8.5 8.8 17.3 6 0.72
¡Ø Standard length : RS40P-1.016m(80links) / RS60P-1.010m(53links)





CHAIN TYPE

CODE.NO

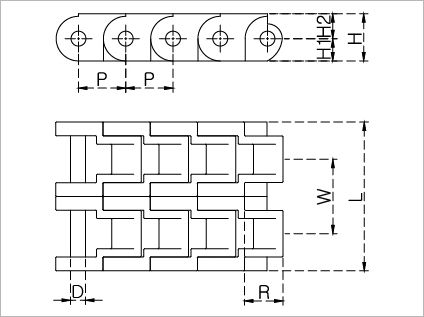

MATERIAL P R W L H1 H2 H D WEIGHT
PLATE PIN MM MM MM MM MM MM MM MM kg/M
RS40PW-CRT 1135-CRT ACETAL STAINLESS
STEEL
12.7 7.94 20 40 6 6.7 12.7 4 0.72
RS60PW-CRT 1136-CRT 19.05 11.91 30 60 8.5 8.8 17.3 6 1.44
¡Ø Standard length : RS40W-1.016m(80links) / RS60PW-1.010m(53links)
