RS 40P / 60P CHAIN
RS 40PW / 60PW CHAIN
RS 40P(HP TYPE) /
60P(HP TYPE) CHAIN
RS 40P(CRT TYPE) /
60P(CRT TYPE) CHAIN
RS 40P(AST TYPE) /
60P(AST TYPE) CHAIN

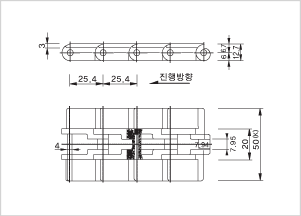

RS 2040P CHAIN
RS 40P(PLATE TYPE) CHAIN
PLASTIC COMBI CHAIN



Untitled Document
Click

125

CHAIN TYPE

CODE.NO

MATERIAL PLATE
WIDTH(K)
WORKING
LOAD(MAX)
BACKFLEX
RADIUS(MIN)
WEIGHT
PLATE PIN MM INCH N R kg/M
RS2040P 1130 ACETAL STAINLESS
STEEL
50 1.96 440 50 0.42
※ Standard length : 3.048m-10feet(120links)
