| 이미지를 클릭 하시면 해당제품을 보실 수 있습니다. |
|
 |
 |
| FREEFLOW
TOP CHAIN |
|
 |
CLIP TOP
CHAIN
(CT-CHAIN) |
|
 |
| CONVEYOR
PROFILE & SECTION |
|
 |
CLIP COVER
CHAIN
(CC-CHAIN) |
|
 |
CLIP COVER
CHAIN
(CC-CHAIN) |
|
 |
CLIP COVER
CHAIN
(CC-CHAIN) |
|
|
 |
|
 |
| |
 |
| |
|
CLIP TOP CHAIN의 장점
· 체인과 체인 사이에 틈새가 없어서 이물질이 끼지 않는다.
· 수지부상면의두께를최소화하여서저중량이송에적합합니다.
· 철체인, 스텐체인, 무급유체인, 기타 등등에 적용된다.
· 부분파손시보완이가능하고체인노출이없어서산업재해를예방한다.
· 한방향(정회전)으로만사용이가능한체인이다.
PROS OF CLIP TOP CHAIN
· Eliminating the gap between chains prevents foreign substances
from being caught
· Minimizing the thickness of resin top makes it suitable
for low
weight transportation.
· Implemented on steel chain, stainless steel chain, unlubricated
chain, etc.
· Capable of supplementing the system at partial damage and
enclosed chain design prevents industrial accidents.
· Can only be used in one-way (forward) operation. |
|
|
| HP TYPE의 장점 |
PROS OF HP TYPE |
|
|
고성능의내부윤활, 일반아세탈재질에비해마모성을40%감소
LF재료보다 매우 낮은 마모율,
건조한 상태 운전 시 마모감소, 고속 운전 사용 시 적합 |
High-performance internal lubrication, reduces
wear property by
40% over regular acetal materials.
Significantly low wear over LF materials
Reduced wear under dry operation conditions, suited for high-speed
operation |
|
|

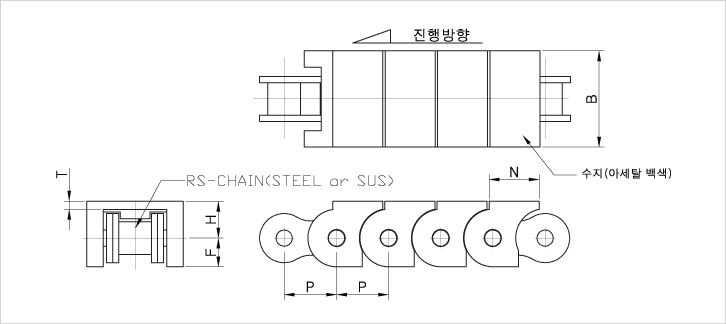

| CHAIN TYPE |
CODE.NO |
P |
H |
B |
N |
F |
T |
WORKING
LOAD(MAX)/N |
WEIGHT(Kg/M) |
| CT40 |
5521 |
12.7 |
9 |
23.5 |
12.2 |
7 |
2 |
2100 |
0.65 |
| CT40-HP |
5521-HP |
12.7 |
9 |
23.5 |
12.2 |
7 |
2 |
2100 |
0.65 |
| CT60 |
5522 |
19.05 |
13.5 |
35.5 |
18.5 |
10.5 |
3 |
4950 |
1.94 |
| CT60-HP |
5522-HP |
19.05 |
13.5 |
35.5 |
18.5 |
10.5 |
3 |
4950 |
1.94 |
| ※ Standard length : CT40-3.048m(240links)
/ CT60-3.048m(160links) |
|
|
>
