FREEFLOW TOP CHAIN & CLIP COVER CHAIN
Untitled Document
이미지를 클릭 하시면 해당제품을 보실 수 있습니다.
FREEFLOW TOP CHAIN
CLIP TOP CHAIN
(CT-CHAIN)
CONVEYOR PROFILE & SECTION
CLIP COVER CHAIN
(CC-CHAIN)
CLIP COVER CHAIN
(CC-CHAIN)
CLIP COVER CHAIN
(CC-CHAIN)
■ CLIP COVER CHAIN의 종류
CHAIN TYPE
CODE.NO
P
A
B
H
T
WORKING
LOAD(MAX)/N
WEIGHT(Kg/M)
CC35
5523
9.525
18
16
13.5
8.5
2200
0.45
CC40
1174
12.7
24
22
18.0
11.0
3630
0.86
CC50
1175
15.875
30
27
21.5
13.0
6375
1.36
CC60
1176
19.05
36
32
25.0
15.0
8825
2.0
CC80
5524
25.4
49
40
19.0
19.0
14700
3.2
※ Standard length : 3.048m

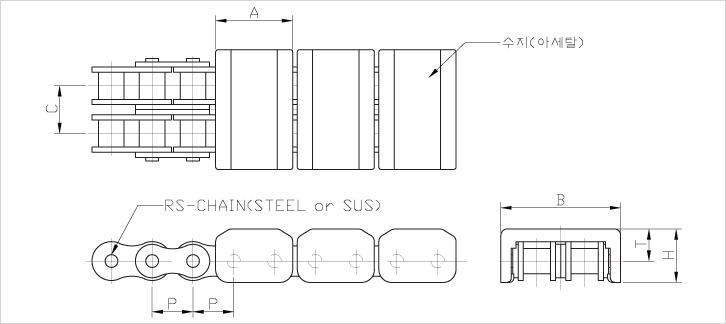

■ CLIP COVER CHAIN의 종류
CHAIN TYPE
CODE.NO
P
A
B
C
H
T
WORKING
LOAD(MAX)/N
WEIGHT(Kg/M)
CC40-2
1174-2
12.7
24
37
14.4
18
11
6180
1.55
CC60-2
1176-2
19.05
36
56
22.8
25
15
15000
3.70
※ Standard length : 3.048m
>
