CORNER TRACKS
BEVELFLEX
CORNER TRACKS
(SPLIT TYPE)TABFLEX
CORNER TRACKS (ONE BODY TYPE)TABFLEX
CORNER TRACKS MAGNETFLEX
STRAIGHT TRACKS (SPLIT TYPE)TABFLEX
CORNER DISCS FOR
PLASTIC CHAINS

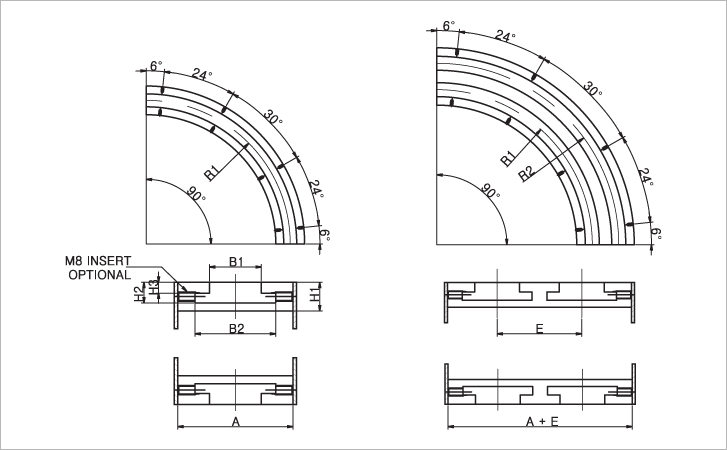

SINGLE STANDARD



 DOUBLE STANDARD



SINGLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH B1 B2 H1 H2 H3 RADIUS A
R1
P826CT/SS826CT

1810

 100 45 70 25 18 9.5 500 100
P1143CT/SS1143CT 1811/1812
 125 610 125
SS1905CT
 1813 200 200
P1905CHT 1814 200 58 90 32 26 16 200
P2540CHT
 1815 265 265
P3048CHT
 1816 320 320
LBP953CHT
 1817 125 58 90 670 125
SP826CT
 1818 100 34.6 60 32 26 19 610 100
SP1143CT
 1819 125 125
SP1905CT 1820 200 200
SP2540CT
 1821 265 265
SP3048CT
 1822 320 320
PRT,PR1700T 1823 90 58 70 25 18 9 890
1825 1100
A600CT 1840 80 47 60 32 25 5 700 80
P826BO
 1841 100 45 70 25 18 9.5 250 100
P635F
 1842 65 23 40 32 25 6 150 65
P826F
 1843 85 38 61 32 25 6 160 85
P103F 1844 105 48 80 32 25 6 200 105

DOUBLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH B1 B2 H1 H2 H3 RADIUS E A
R1 R2
P826CT

1826

 185 45 70 25 18 9.5 500 585 85 100
SS826CT
P1143CT
 1827 245 610 730 120 125
SS1143CT
SS1905CHT
 1829 395 610 805 195 200
P1905CHT
 1830 395 58 90 32 26 16 610 805 195 200
P2540CHT
 1831 525 870 260 265
P3048CHT
 1832 630 920 310 320
LBP953CT
 1833 225 670 770 100 125
SP826CT
 1834 190 34.6 60 32 26 19 610 700 90 100
SP1143CT
 1835 245 730 120 125
SP1905CT
 1836 395 805 195 200
SP2540CT
 1837 525 870 260 265
SP3048CT
 1838 630 920 310 320
