CORNER TRACKS
BEVELFLEX
CORNER TRACKS
(SPLIT TYPE)TABFLEX
CORNER TRACKS (ONE BODY TYPE)TABFLEX
CORNER TRACKS MAGNETFLEX
STRAIGHT TRACKS (SPLIT TYPE)TABFLEX
CORNER DISCS FOR
PLASTIC CHAINS

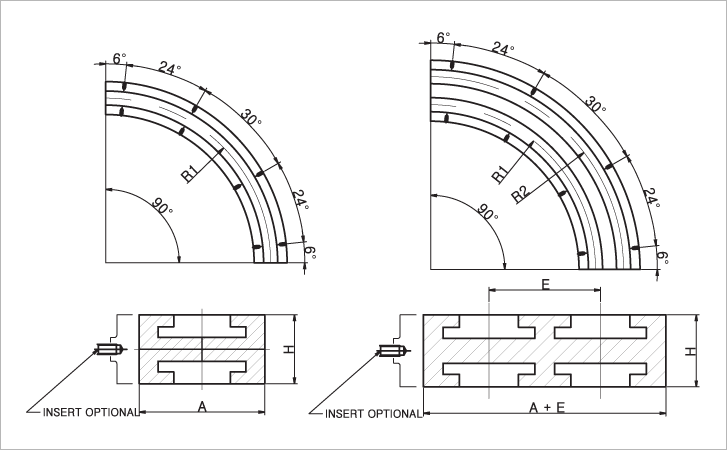

SINGLE STANDARD



DOUBLE STANDARD



SINGLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH H RADIUS A
R1
P826CT

1845

100 55 500 100
SS826CT
P1143CT
1846 125 610 125
SS1143CT
P1905CHT
1848 200 60 610 200
SS1905CT
P2540CHT 1849 265 265
P3048CHT
1850 320 310
LBP953CHT 1851 125 670 125
SP826CT
1852 100 610 100
SP1143CT
1853 125 125
SP1905CT 1854 200 200
SP2540CT 1855 265 265
SP3048CT 1856 320 320

DOUBLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH H RADIUS T A
R1 R2
P826CT

1857

185 55 500 585 85 100
SS826CT
P1143CT 1858 245 610 730 120 125
SS1143CT
P1905CHT 1860 395 60 610 805 195 200
SS1905CT
P2540CHT 1861 525 610 870 260 265
P3048CHT
1862 630 610 920 310 310
LBP953CHT 1863 225 670 770 100 125
SP826CT 1864 190 610 700 90 100
SP1134CT
1865 245 730 120 125
SP1905CT 1866 395 805 195 200
SP2540CT 1867 525 870 260 265
SP3048CT 1868 630 920 310 320

TRIPLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH H1 RADIUS T A
R1 R2 R3
P826CT

1869

270 55 500 585 670 85 100
SS826CT
LBP953CHT 1870 325 60  670 770 870 100 125
SP826CT 1871 280 610 700 790 90 100
