CORNER TRACKS
BEVELFLEX
CORNER TRACKS
(SPLIT TYPE)TABFLEX
CORNER TRACKS (ONE BODY TYPE)TABFLEX
CORNER TRACKS MAGNETFLEX
STRAIGHT TRACKS (SPLIT TYPE)TABFLEX
CORNER DISCS FOR
PLASTIC CHAINS

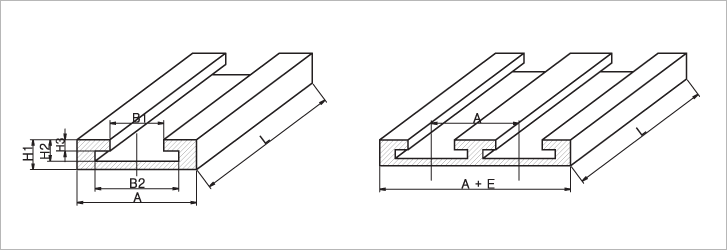

SINGLE STANDARD



DOUBLE STANDARD


SINGLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH B1 B2 H1 H2 H3 A L
P826CT/SS826CT 5098 100 45 70 25 18 9.5 100 1000/
2000
P1143CT/SS1143CT 5099 125 125
SS1905CT 5100 200 200
P1905CHT 5101 200 58 90 32 24 16 200
P2540CHT 5102 265 265
P3048CHT 5103 320 320
SP826CT 5104 100 34.6 60 32 26 19 100
SP1143CT 5105 125 125
SP1905CT 5106 200 200
SP2540CT 5107 265 265
SP3048CT 5108 320 320
PRT,PR1700T 5109 90 58 70 25 18 9
5110
A600CT 5111 80 47 60 32 25 5 80
P826BO 5112 100 45 70 25 18 9.5 100
P635F 5113 65 23 40 32 25 6 65
P826F 5114 85 38 61 32 25 6 85
P103F 5115 105 48 80 32 25 6 105

DOUBLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH B1 B2 H1 H2 H3 E A L
P826CT/SS826CT 5116 185 45 70 25 18 9.5 85 100 1000/
2000
P1143CT/SS1143CT 5117 245 120 125
SS1143CT 5118
SS1905CT 5119 395 195 200
P1905CHT 5120 395 58 90 32 24 16 195 200
P2540CHT 5121 525 260 265
P3048CHT 5122 630 310 320
SP826CT 5123 190 34.6 60 32 26 19 90 100
SP1143CT 5124 245 120 125
SP1905CT 5125 395 195 200
SP2540CT 5126 525 260 265
SP3048CT 5127 630 310 320
