CORNER TRACKS
BEVELFLEX
CORNER TRACKS
(SPLIT TYPE)TABFLEX
CORNER TRACKS (ONE BODY TYPE)TABFLEX
CORNER TRACKS MAGNETFLEX
STRAIGHT TRACKS (SPLIT TYPE)TABFLEX
CORNER DISCS FOR
PLASTIC CHAINS


SINGLE STANDARD



 DOUBLE STANDARD





SINGLE STANDARD

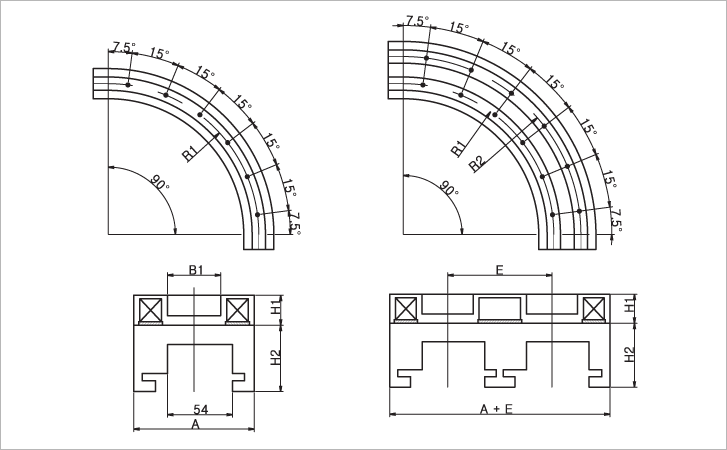

FOR CHAIN TYPE CODE.NO WIDTH B1 H1 H2 RADIUS
R1
SS826CM

1876

 100 44.2 25 55 500
1877 111
SS1143CM 1878 125 610
1879 129
SS1905CM
 1880 214
FTM1050 1872 100 44.2 27 63 500

DOUBLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH B1 H1 H2 RADIUS E A
R1 R2
SS826CM

1881

 190 44.2 27 55 500 590 90 100
1882 189 589 85 100
1883 185 585 120 100
SS1143CM 1884 249 60 610 560 120 129
1885 410 670 196
SS1905CM 1886 185 708 85 214
FTM1050 1873   44.2 27 63 500 585   185

TRIPLE STANDARD
FOR CHAIN TYPE CODE.NO WIDTH B1 H1 H2 RADIUS E A
R1 R2 R3
SS826CM

1887

 280 44.2 27 55 500 590 680 90 100
1888 278 589 678 89 100
1889 270 585 670 85 100
FTM1050 1874 270 44.2 27 63 500 585 670 85 100

* a1 : single standard width
