  Crescent chain is used for sushi conveyor machine
This chain rotates 360 degrees and chains sprocket operates
horizontally. Therefore, this chain can be installed in a small space.
The material can be either plastic or stainless.

Å©¸®¼¾Æ® üÀÎÀº ȸÀüÃÊ¹ä ±â±â¿¡ ÁÖ·Î »ç¿ë µÈ´Ù.
ÀÌ Ã¼ÀÎÀº 360µµ ȸÀüÇϸç üÀÎÀÇ ½ºÇÁ·ÎÄÏÀº ¼öÆòÀ¸·Î ±¸µ¿À» ½ÃŲ´Ù.
µû¶ó¼­ ÀÌ Ã¼ÀÎÀÇ Æ¯¼ºÀº ºñÁ¼Àº °ø°£¿¡ ¼³Ä¡°¡ ¿ëÀÌÇÏ´Ù.
ÀçÁúÀº Çöó½ºÆ½°ú ½ºÅÙ·¹½º µÎ °¡Áö·Î »ý»êµÈ´Ù.


Untitled Document
Click

148-1







CHAIN TYPE

CODE.NO

MATERIAL PLATE
WIDTH(K)
WORKING
LOAD(MAX)
SIDEFLEX
RADIUS(MIN)
WEIGHT
PLATE PIN MM INCH N R kg/M

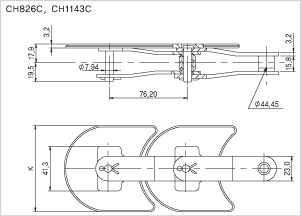

CH826C
CH1143C

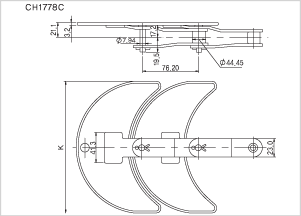

CH1778C
1236
1237
1238
ACETAL STAINLESS
STEEL
82.6
114.3
177.8
3.25
4.50
7.00
1230
1230
1230
110
110
110
5.9
6.9
8.1
¡Ø Standard length : 1.067m(14links)
