Untitled Document
Click

156,157,159


145

CHAIN TYPE CODE.NO MATERIAL PLATE
WIDTH(K)
WORKING
LOAD(MAX)
SIDEFLEX
RADIUS(MIN)
BACKFLEX
RADIUS(MIN)
WEIGHT
PLATE PIN MM INCH N R R kg/M

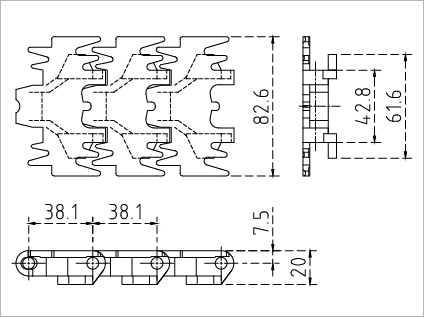

P82.6BO-F

1206-F

ACETAL STAINLESS
STEEL
82.6 3.25 2100 500 150 0.95
※ Standard length : 3.048m-10feet(80links) 1206-F-R500
