Untitled Document
Click

156,157,159


146

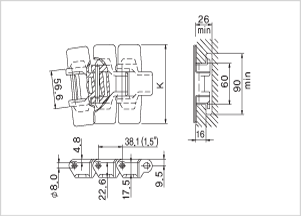

CHAIN TYPE CODE.NO MATERIAL PLATE
WIDTH(K) 		WORKING
LOAD(MAX) 		SIDEFLEX
RADIUS(MIN) 		BACKFLEX
RADIUS(MIN)		 WEIGHT
PLATE PIN MM INCH N R R kg/M
P1905CHT
P2540CHT
P3048CHT

1208
1209
1210

 ACETAL STAINLESS
STEEL		 190.5
254.0
304.8		 7.50
10.00
12.00		 2830
2830
2830		 610
610
610		 50
50
50		 2.38
2.69
2.94
※ Standard length : 3.048m-10feet(80links) R610
