SIDE GUIDE-1

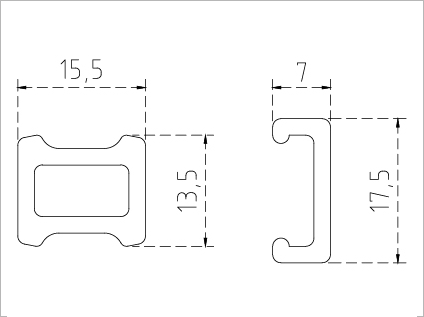

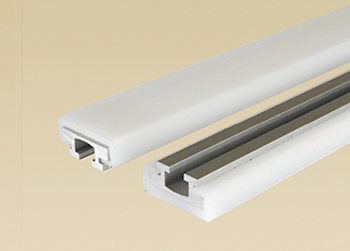

ULF SIDE GUIDE
Material : Aluminum,
UHMW-PE
Standard(L) : AL 4m,
PE 50m



TYPE CODE
AL-S-15.5 6201
G-S-17.5 6202

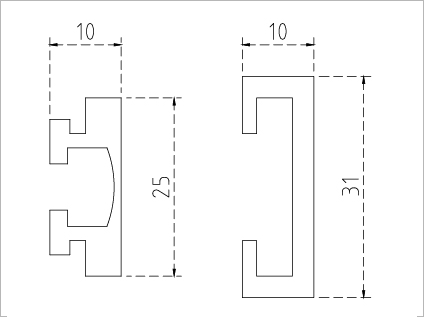

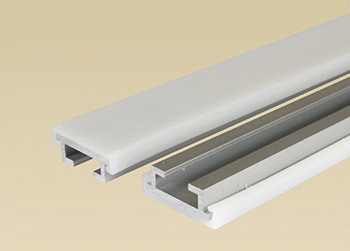

PROFILE GUIDE
Material : Aluminum,
HDPE
Standard(L) : AL 3m,
PE 3m



TYPE CODE
AL25 1990
PE31 1991

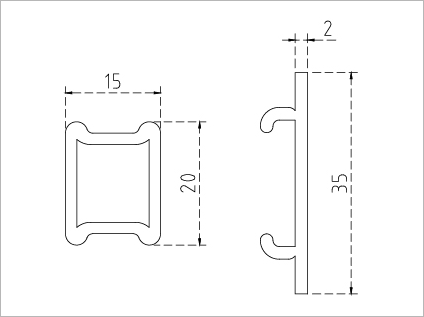

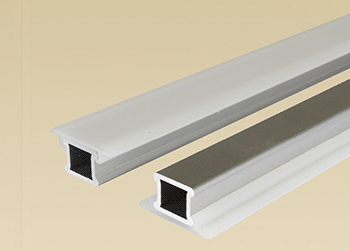

20*35 SIDE GUIDE
Material : Aluminum,
HDPE
Standard(L) : AL 4m,
PE 50m



TYPE CODE
AL20 6048
PE35 6049

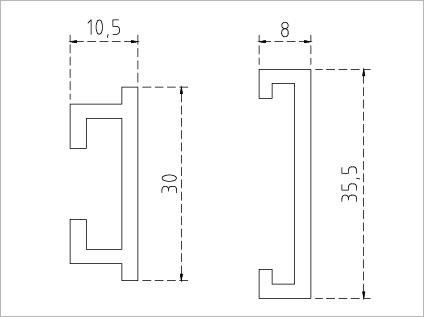

WD PROFILE GUIDE
Material : Aluminum,
HDPE
Standard(L) : AL 4m,
PE 4m



TYPE CODE
AL30 6031
PE30 6032
