CHAIN TYPE

CODE.NO

MATERIAL PLATE
WIDTH(K)
WORKING
LOAD(MAX)
SIDEFLEX
RADIUS(MIN)
WEIGHT
PLATE PIN MM INCH N R kg/M

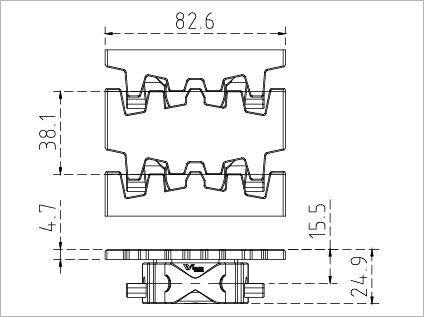

P82.6CF

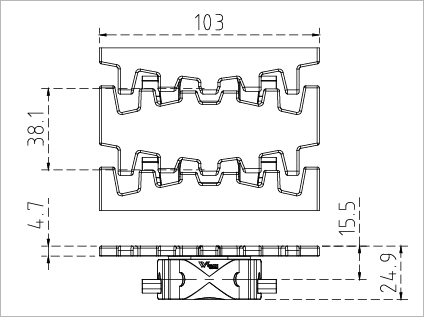

P103CF

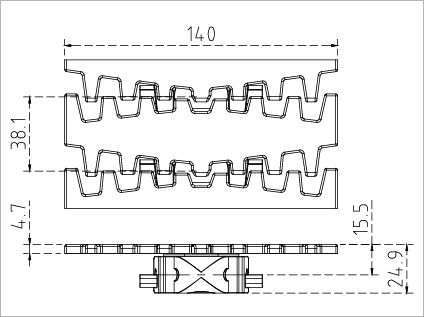

P140CF

1248
1249
1250

ACETAL STAINLESS
STEEL
82.6
103
140
3.25
4.05
5.51
3000
3000
3000
160
200
250
1.28
1.38
1.50
¡Ø Standard length: P82.6CF : 3.048m(80links)
  P103CF : 3.048m(80links)
  P140CF : 3.048m(80links)
