Section F-8

COMPONENTS CODE
AL 20 GUIDE 6048
PE 35 GUIDE 6049
STS-2 6051
ST-190 6052
SEMS SOCKET
BOLT(M8)
6061
5TX19X19 (M8) 6083

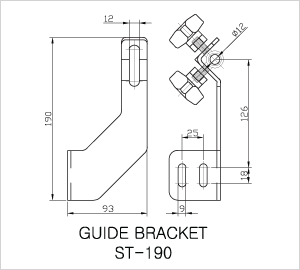

GUIDE BRACKET ST-190

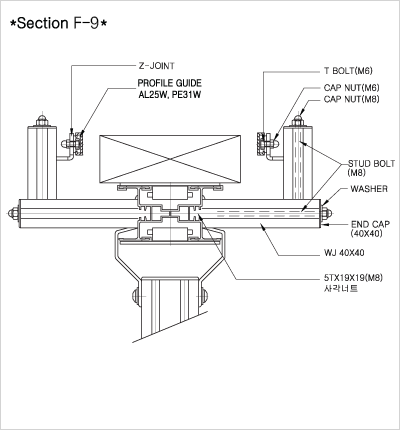

Section F-9

COMPONENTS CODE
AL25W 1990
PE31W 1991
T BOLT(M6) 6064
CAP NUT(M6 ) 6067
Z-JOINT 6071
CAP NUT(M8) 6068
WJ 40X40 6057
5TX19X19 (M8) 6083
STUD BOLT (M8) 6085
WASHER 6084
END CAP(40X40) 6086
