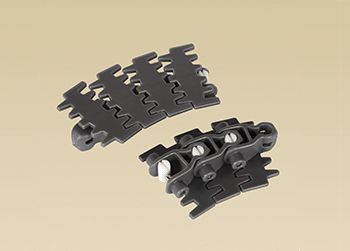

HP TYPE의 장점   PROS OF HP TYPE
고성능의 내부윤활, 일반 아세탈재질에 비해 마모성을 40%감소
LF재료보다 매우 낮은 마모율,
건조한 상태 운전 시 마모감소, 고속 운전 사용 시 적합
  High-performance internal lubrication, reduces wear property
by 40% over regular acetal materials.
Significantly low wear over LF materials
Reduced wear under dry operation conditions, suited for high-speed operation





CHAIN TYPE

CODE.NO

MATERIAL PLATE
WIDTH(K)
WORKING
LOAD(MAX)
SIDEFLEX
RADIUS(MIN)
WEIGHT
PLATE PIN MM INCH N R kg/M

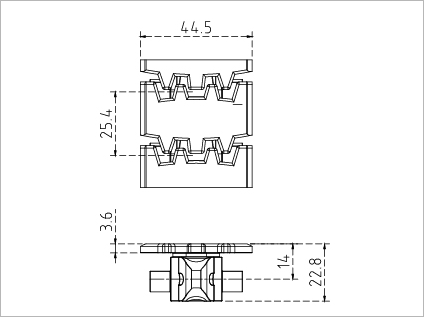

P44.5F-HP

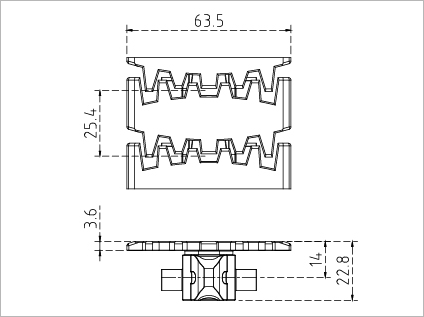

P63.5F-HP

6001 - HP
1245 - HP

ACETAL STAINLESS
STEEL
44.5
63.5
1.75
2.50
2000 150 0.68
0.76
※ Standard length: P44.5F : 3.048m(120links)
  P63.5F : 3.048m(120links)
