Section F-7

COMPONENTS CODE
STANDARD SIDE
GUIDE 20X20
1946
S-ADJUSTABLE
CLAMP
1947
SWIVEL BRACKET
HEAD
1933-1
SPACER-1 1933-2
SPACER-2 1933-3
WASHER 6084
CAP NUT(M8) 6068
STUD BOLT(M8) 6085
END CAP(40X40) 6086
WJ 40X40 6057

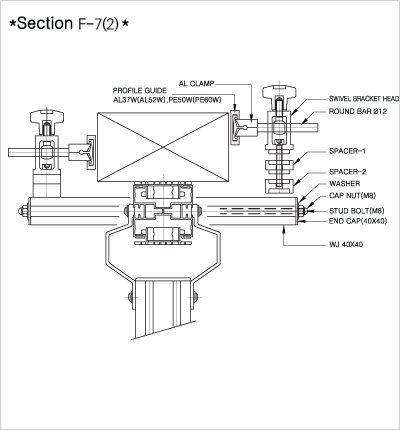

Section F-7(2)

COMPONENTS CODE
PROFILE GUIDE
AL37W(52W)
1934(1936)
PROFILE GUIDE
PE50W(60W)
1935(1937)
AL CLAMP 1938
SWIVEL BRACKET HEAD 1933-1
ROUND BAR ¨ª12 6088
SPACER-1 1933-2
SPACER-2 1933-3
WASHER 6084
CAP NUT(M8) 6068
STUD BOLT(M8) 6085
END CAP(40X40) 6057
WJ 40X40 6057
