| 이미지를 클릭 하시면 해당제품을 보실 수 있습니다. |
|
 |
 |
WOOJIN
AUTOVEYOR
SYSTEM |
|
 |
FLEXIBLE
CONVEYOR
COMPOSITION |
|
 |
FLEXIBLE
CON.V SLIDE
RAIL INSTALL |
|
 |
| AUTOVEYOR LINK CHAIN |
|
 |
| AUTOVEYOR LINK
CHAIN |
|
 |
AUTOVEYOR LINK
CHAIN
High Performance |
|
 |
AUTOVEYOR LINK
CHAIN
- FLIGHT TYPE |
|
 |
AUTOVEYOR LINK
CHAIN
(FLIGHT TYPE) |
|
 |
| SPROCKET
FOR AUTOVEYOR LINK CHAIN |
|
 |
| AL FRAMES
FOR AUTOVEYOR LINK CHAIN |
|
 |
| AUTOVEYOR CARRY
CHAIN |
|
 |
AUTOVEYOR CARRY
CHAIN
- High Performance |
|
 |
AUTOVEYOR CARRY SPLIT
CHAIN
|
|
 |
AUTOVEYOR CARRY SPLIT
CHAIN
- High Performance
|
|
 |
| HP TYPE
CHAIN CONVEYOR |
|
 |
| AL FRAMES
FOR AUTOVEYOR CARRY CHAIN |
|
 |
| CHAIN FOR
SIDE GRIP CONVEYOR |
|
 |
| SIDE GRIP
CHAIN CONVEYOR |
|
 |
FLEXIBLE CONVEYOR CHAIN
WITH ROLLER |
|
 |
AUTOVEYOR CARRY
NON-SLIP CHAIN |
|
 |
| FLEXIBLE
CON.V SIDE GUIDES SECTION F-4,F-5 |
|
 |
| FLEXIBLE
CON.V SIDE GUIDES SECTION F-8,F-9 |
|
 |
| FLEXIBLE
CON.V SIDE GUIDES SECTION F-7,F-7(2) |
|
 |
DRIVE/TAIL PARTS
FOR P44.5F |
|
 |
DRIVE/TAIL PARTS
FOR P63.5F |
|
 |
DRIVE/TAIL PARTS
FOR P82.6F |
|
 |
DRIVE/TAIL PARTS
FOR P82.6CF |
|
 |
DRIVE/TAIL PARTS
FOR P103CF |
|
 |
DRIVE/TAIL PARTS
FOR P140CF |
|
 |
| GUIDE BRACKET-1 |
|
 |
| GUIDE BRACKET-2 |
|
 |
| GUIDE BRACKET-3 |
|
 |
| SIDE GUIDE-1 |
|
 |
| SIDE GUIDE-2 |
|
 |
| MOTOR FLANGE |
|
 |
| WHEEL BEND |
|
 |

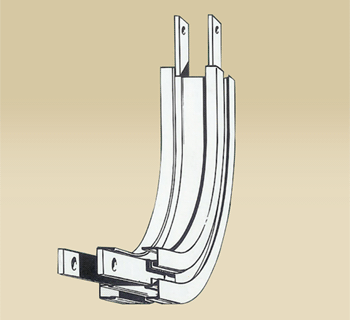

HORIZONTAL
BEND /
VERTICAL BEND |
|
 |
PIN INSERT GUIDE
|
|
 |
| CHAIN SLIDE
GUIDES |
|
 |
| LEG SUPPORT
PARTS |
|
 |
| FLEXIBLE
CONVEYOR COMPONENTS 1 |
|
 |
| FLEXIBLE
CONVEYOR COMPONENTS 2 |
|
 |
| FLEXIBLE
CONVEYOR COMPONENTS 3 |
|
 |
| FLEXIBLE
CONVEYOR COMPONENTS 4 |
|
 |
| 과일선별기 CONVEYOR |
|
 |
| WHEEL BEND
CONVEYOR |
|
 |
| SIDE GRIP
CONVEYOR |
|
 |
FLEXIBLE
CONVEYOR
적용사례 |
|
|
 |
|
 |
| |
 |
| |
|
|
|
|

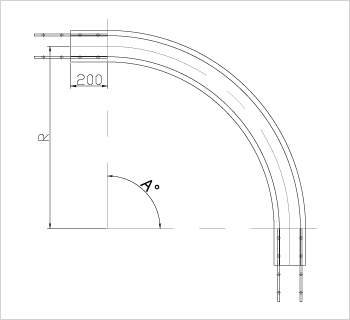

| -HORIZONTAL BEND- |
 |
|
|
| TYPE |
CODE.NO |
A˚
|
R |
| P44.5F |
6090 |
15, 30, 90 ~ 180 |
400, 500, 600, 700, 800, 900, 1000~ |
| P63.5F |
6024 |
15, 30, 90 ~ 180 |
400, 500, 600, 700, 800, 900, 1000~ |
| P82.6CF |
6025 |
15, 30, 90 ~ 180 |
400, 500, 600, 700, 800, 900, 1000~ |
| P103CF |
6026 |
15, 30, 90 ~ 180 |
400, 500, 600, 700, 800, 900, 1000~ |
| P140CF |
6027 |
15, 30, 90 ~ 180 |
400, 500, 600, 700, 800, 900, 1000~ |

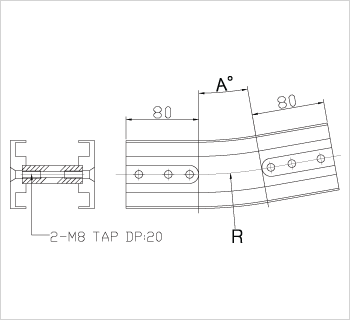

| TYPE |
CODE.NO |
A˚
|
R |
| P44.5F |
6091 |
10, 15, 20, 30 ~ 90 |
300, 400, 500, 600, 700, 800 |
| P63.5F |
6028 |
10, 15, 20, 30 ~ 90 |
300, 400, 500, 600, 700, 800 |
| P82.6CF |
6029 |
10, 15, 20, 30 ~ 90 |
300, 400, 500, 600, 700, 800 |
| P103CF |
6030 |
10, 15, 20, 30 ~ 90 |
300, 400, 500, 600, 700, 800 |
| P140CF |
6031 |
10, 15, 20, 30 ~ 90 |
300, 400, 500, 600, 700, 800 |
|
|
>
