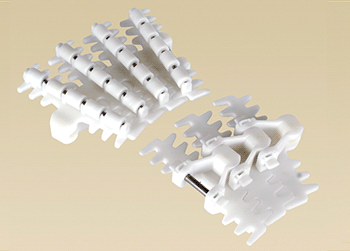

AUTOVEYOR LINK CHAIN WITH ROLLER


AUTOVEYOR CARRY CHAIN WITH ROLLER


CHAIN TYPE

CODE.NO

MATERIAL PLATE
WIDTH(K)
WORKING
LOAD(MAX)
SIDEFLEX
RADIUS(MIN)
WEIGHT
PLATE PIN MM INCH N R kg/M

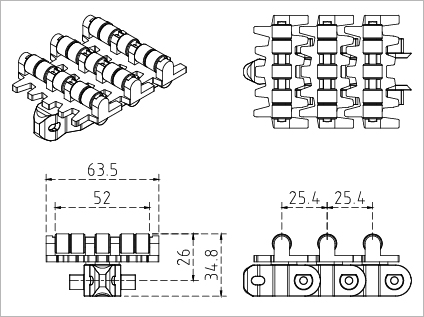

P63.5F-RL

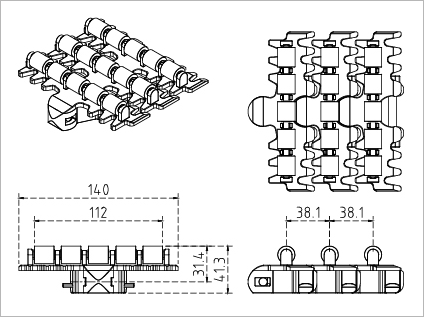

P140CF-S-RL

1245-RL
1250-S-RL

ACETAL STAINLESS
STEEL
63.5
140
2.50
5.51
2000
4000
150
250
1.18
2.68
¡Ø Standard length: P63.5F-RL : 3.048m(120links)
  P140CF-S-RL : 3.048m(80links)
